1:32 Scale 1:32
€39.90
Tax included
You accumulate 1.17 € by buying this product
Description
Permanent lighting 8 xenon Front + 2 Rear (with Brake) + 2 Exhaust

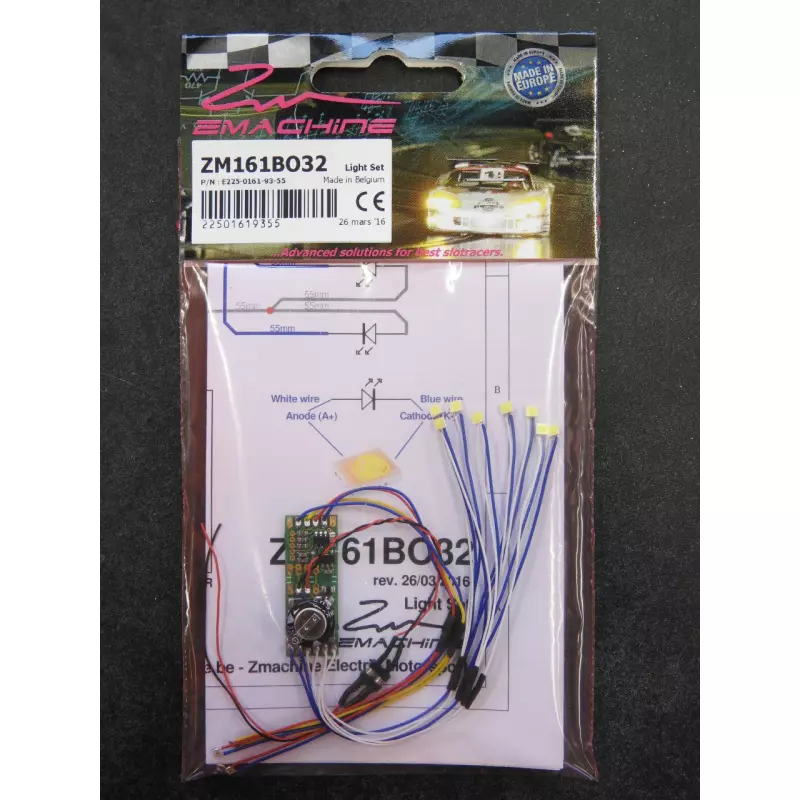

LED front and rear pre-wired lights on longer after car deslots or power is removed. The kit contains an electronic circuit board with large electrolytic capacitor and 12 LEDS : 8 front xenon (slightly bluish cool white 6500°K), 2 rear lights with integrated brake lights and 2 exhaust flame simulation.
Installs easily in most 1/32 slot cars.
Features :
- Reverse voltage & overcurrent protection
- Stabilized power head & tail lights (w. energy backup).
- Combined & integrated brake lights w. twin small case 0805 super red rear leds.
- Exhaust flame simulation w. twin small case 0603 high intensity yellow leds.
- High intensity, robust & lightweight small case front Xenon leds with 1.7mm dia. dome.
- Perfect fitting GT or Rally 1/32 scale.
Main characteristics
- Dimensions (L x l x h) : 29 x 10 x 6 mm max (w. supercap)
- Weight : 3.49 gr (w. power conn & supercap)
- Power supply : min 8Vdc/ac - Max 25Vdc/ac (Davic compatible)
- Power consumption : Max 85mA peak - 28mA continuous (@12.8Vdc)
- Lighting backup : > 1 minute.
| Z | Zmachine | |||
| M | Advanced light kits - codification | |||
| 1 | Serie : | 1 = Standard | ||
| 6 | Type : | 6 = RTM (ready to mount in the car) | ||
| 1B | Function : | 1 = Brake + twin exhausts | ||
| Front color : | Default = Xenon | |||
| LED type : | Default = SMD | |||
| O | Front quantity : | Octal =8 | ||
| Rear quantity : | Default = 2 | |||
| 32 | Scale : | 32 = 1/32 | ||
Technical sheet
Color
Xenon
Lighting
Head, tail, brake and exhaust
Feux avant
8
Feux arrière
2
Echappement
2
Freins
Avec
Warning clignotant
Sans
Scale
1:32
