Description

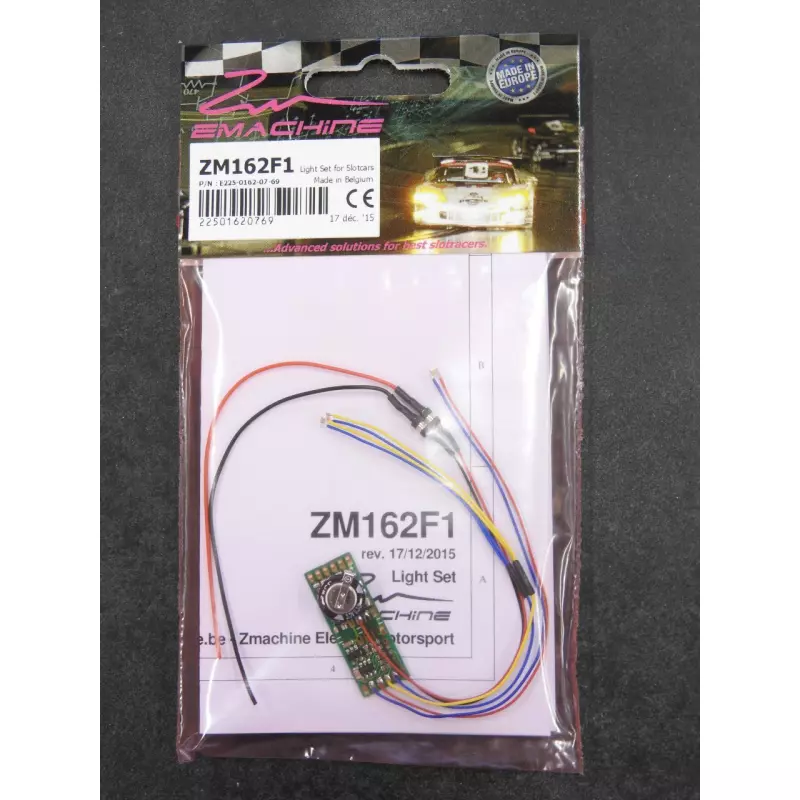

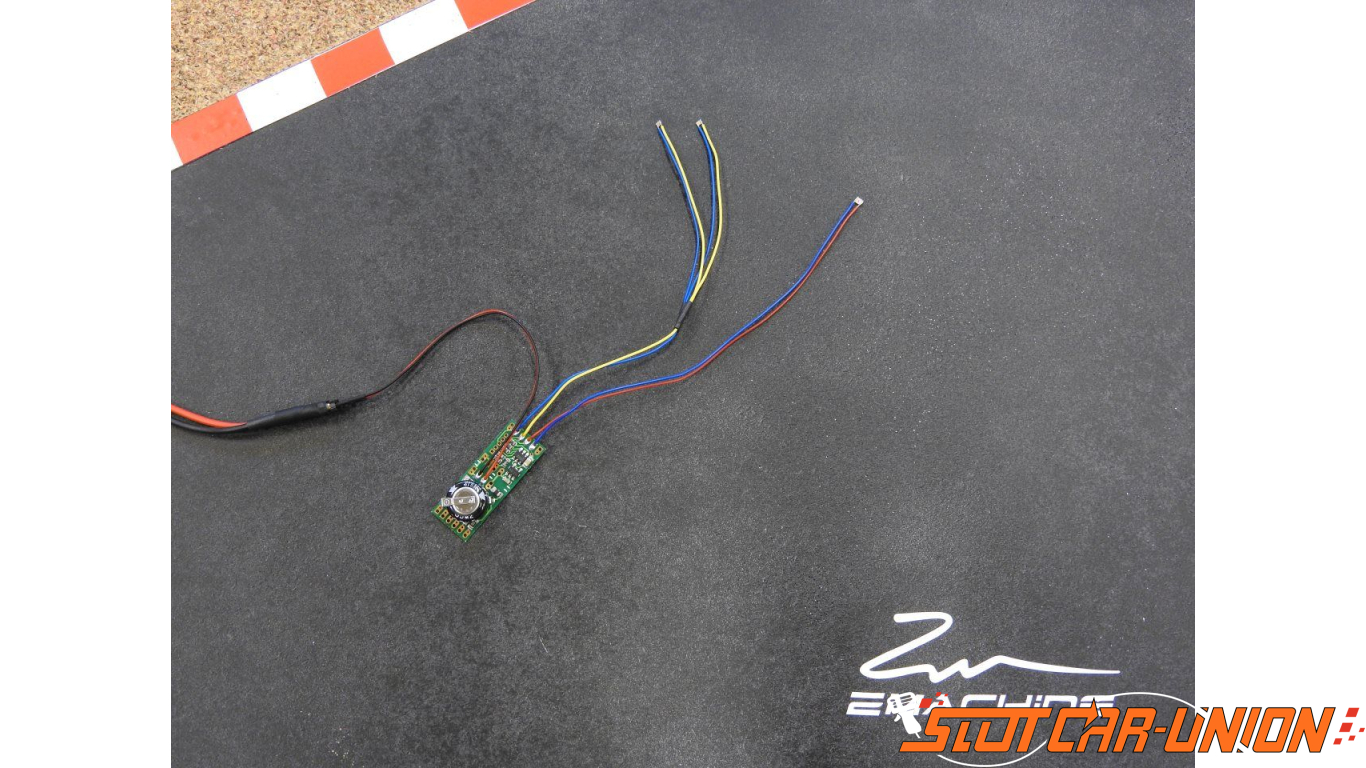

LED front and rear pre-wired lights on longer after car deslots or power is removed. The kit contains an electronic circuit board with large electrolytic capacitor and 3 LEDS : 1 rear light with integrated brake lights and 2 exhaust flame simulation.
Warning/blinking taillight after 2 secondes standby
Installs easily in most slot cars.
Features :
- Reverse voltage & overcurrent protection.
- High intensity brake light with red 0805 led.
- F1 Exhaust flame simulation w. twin high intensity yellow 0603 leds.
- Warning/Flashing brake light on idle after 2 sec.
Main characteristics :
- Dimensions (L x l x h) : 29 x 10 x 6 mm max (w. supercap)
- Weight : 2.22gr (w. power conn & supercap)
- Power supply : min 8Vdc/ac - Max 25Vdc/ac (Davic compatible)
- Power consumption : Max 75mA peak - 5mA continuous (@12.8Vdc)
- Flashing brake light on idle : > 5 minutes.
Z | Zmachine | |||
M | Advanced light kits - codification | |||
1 | Serie : | 1 = Standard | ||
6 | Type : | 6 = RTM (ready to mount in the car) | ||
2F1 | Function : | 2= Brake & Warning on rear + twin exhausts | ||
LED type : | Default = SMD | |||
Rear quantity : | 1 | |||
Scale : | Default = 1/24 |
Technical sheet
Lighting
Tail lights, brake and exhaust
Feux avant
Sans
Feux arrière
1
Echappement
2
Freins
Avec
Warning clignotant
Avec
Scale
1:24 - 1:32
