Expertise and quality of model making at the service of a passion
1:32 Scale 1:32
€29.90
Tax included
You accumulate 0.87 € by buying this product
Description
Permanent lighting 2 xenon Front + 2 Rear (with Brake) + 2 Exhaust

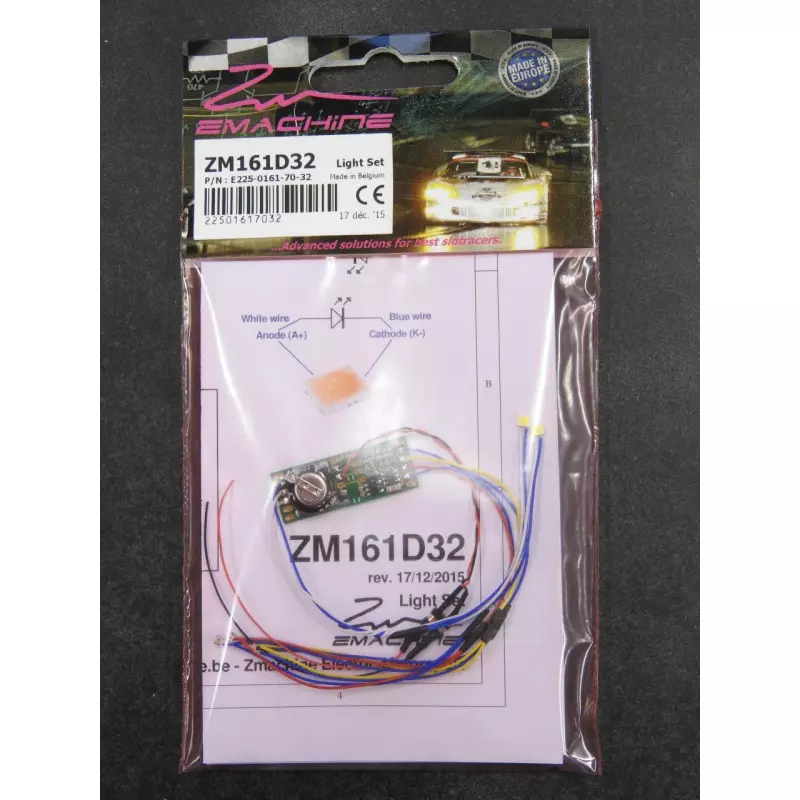

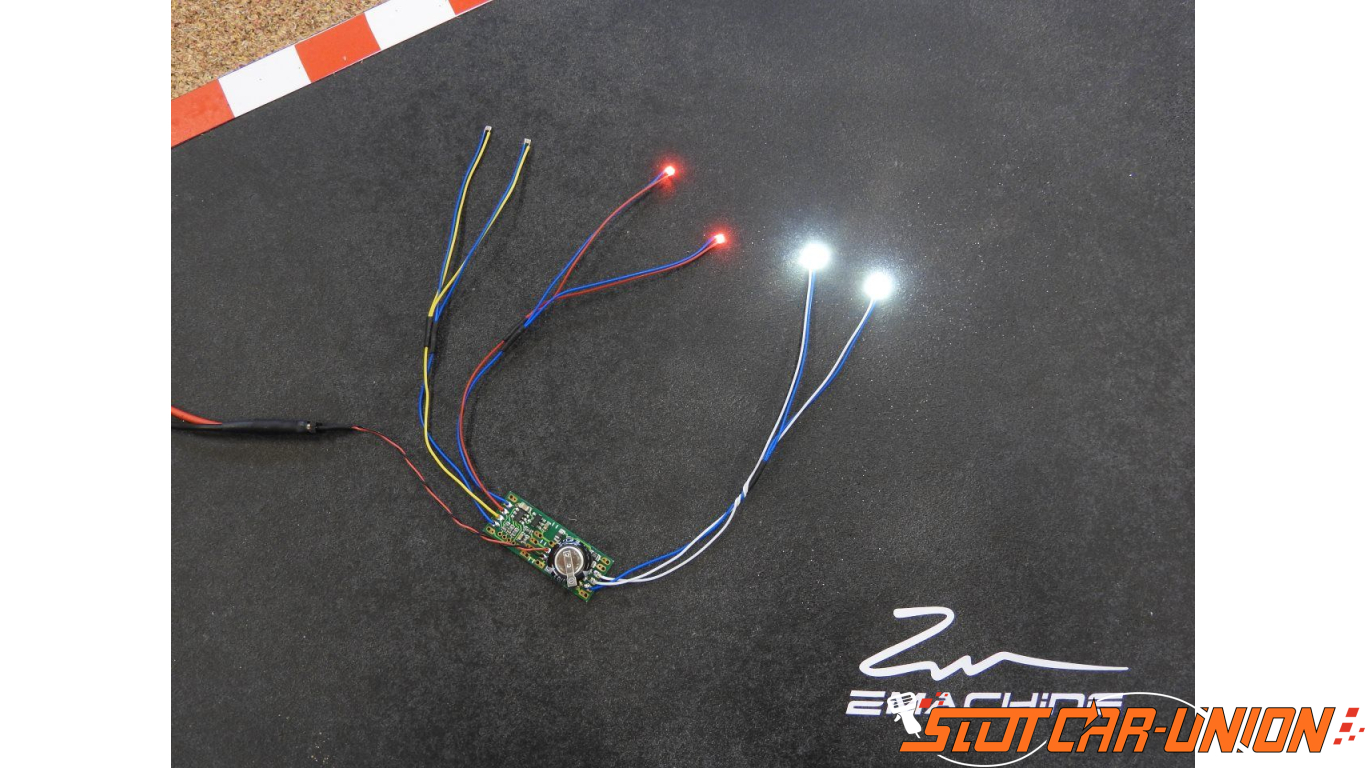

LED front and rear pre-wired lights on longer after car deslots or power is removed. The kit contains an electronic circuit board with large electrolytic capacitor and 6 LEDS : 2 front xenon (slightly bluish cool white 6500°K), 2 rear lights with integrated brake lights and 2 exhaust flame simulation.
Warning/blinking taillights after 2 secondes standby
Installs easily in most 1/32 slot cars.
Features :
- Reverse voltage & overcurrent protection.
- Stabilized power head & tail lights (w. energy backup).
- Combined & integrated brake lights w. twin small case 0805 super red rear leds.
- Warning/blinking taillights after 2 sec stby.
- Exhaust flame simulation w. twin small case 0603 high intensity yellow leds.
- High intensity, robust & lightweight small case front Xenon leds with 1.7mm dia. dome.
- Perfect fitting GT or LMP 1/32 scale.
Main characteristics :
- Dimensions (L x l x h) : 29 x 10 x 6 mm max (w. supercap)
- Weight : 2.70gr (w. power conn & supercap)
- Power supply : min 8Vdc/ac - Max 25Vdc/ac (Davic compatible)
- Power consumption : Max 85mA peak - 16mA continuous (@12.8Vdc)
- Lighting backup : > 2 minutes.
| Z | Zmachine | |||
| M | Advanced light kits - codification | |||
| 1 | Serie : | 1 = Standard | ||
| 6 | Type : | 6 = RTM (ready to mount in the car) | ||
| 1 | Function : | 1 = Brake & Warning on rear + twin exhausts | ||
| Front color : | Default = Xenon | |||
| LED type : | Default = SMD | |||
| D | Front quantity : | Default =2 | ||
| Rear quantity : | Default = 2 | |||
| 32 | Scale : | 32 = 1/32 | ||
Technical sheet
Color
Xenon
Lighting
Head, tail, brake and exhaust
Feux avant
2
Feux arrière
2
Echappement
2
Freins
Avec
Warning clignotant
Avec
Scale
1:32
Questions
If you have any questions regarding the product, feel free to post below. Other consumers may also provide you with additional information. Log in to your member area in order to post or answer a question.
Ask a question
Asked byJon , on 11/01/2023
How can I make this work on a Carrera Digital ? The flames don't work and the brake lights do not work either. The flames will flicker only when passing over a lane change track. The tail lights remain the same intensity always.
Answer bySlot Car-Union
Zmachine kits should always be plugged on your car's motor, not on the digital chip.
