Description
Permanent lightened lighting 2 xenon Front + 2 Rear
Racing series with the "R" PCB regulation and PCB leds separated to avoid weighing the body with the supercap that can stay on the chassis.
LED front and rear pre-wired lights on longer after car deslots or power is removed.

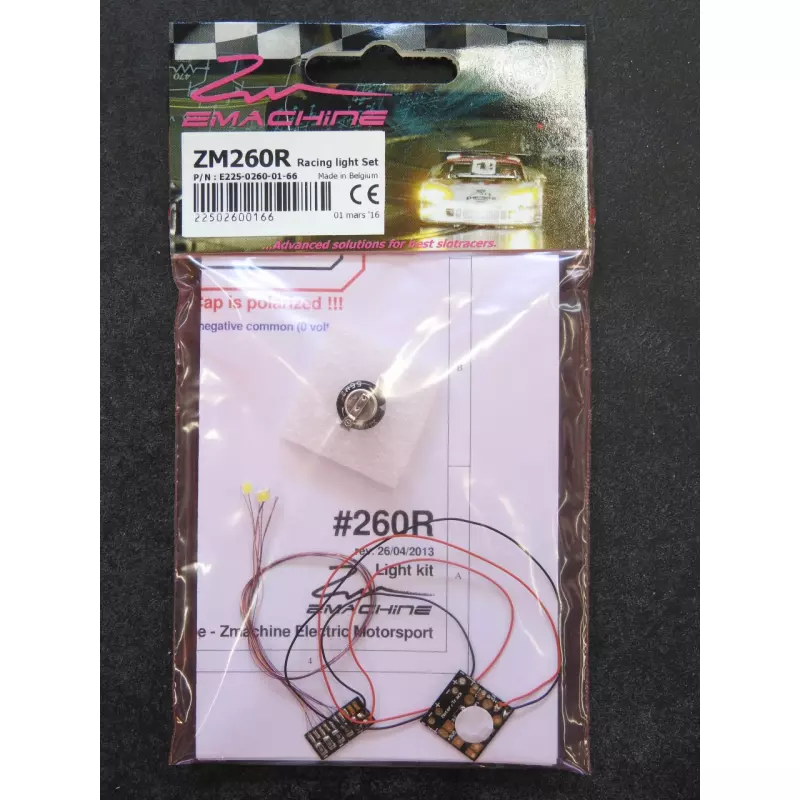

The kit contains an electronic circuit board with large electrolytic capacitor and 4 LEDS : 2 front xenon (slightly bluish cool white 6500°K) and 2 rear lights.
Installs easily in most 1/24 slot cars.
Features :
- Reverse voltage & automatic resettable overcurrent protections.
- Stabilized power head & tail lights (energy backup by 0.22F supercap)
- Only 0.47 gr in the body as standard !!!
- New high efficiency Xenon dome lens on front leds (2.4mm dia. hole)
- Highly thin & flex +5V5 cables, ultra thin led wiring.
- Patching area with connection pads for Motor & Guide wires.
- No need for independant light set power supply wiring.
- Three alternative supercap positions fitting the chassis at the best.
- Pads connection for 2nd optional supercap.
- ID led's resistor already mounted.
Main characteristics :
- In chassis dimensions : 14 x 14 x 6 mm max (w. supercap)
- In body dimensions : 14 x 6 x 1 mm max.
- Total weight : 1.79 gr (complete set w. power wires & one supercap)
- Power supply : min 6.8 Vdc/ac - Max 25Vdc/ac (Davic compatible)
- Power consumption : Max 85mA peak - Max 22mA continuous (@12.8Vdc)
- Lighting backup time : on head > 2 minutes, on tail > 5 minutes.
Z | Zmachine | |||
M | Advanced light kits - codification | |||
2 | Serie : | 2 = Racing | ||
6 | Type : | 6 = RTM (ready to mount in the car) | ||
0 | Function : | 0 = Permanent light only | ||
Front color : | Default = Xenon | |||
LED type : | Default = SMD | |||
Front quantity : | Default =2 | |||
Rear quantity : | Default = 2 | |||
Scale : | Default = 1/24 | |||
R | Special Function : | R = Racing |
Technical sheet
Color
Xenon
Lighting
Headlights and tail lights
Feux avant
2
Feux arrière
2
Echappement
Sans
Freins
Sans
Warning clignotant
Sans
Scale
1:24
