Expertise and quality of model making at the service of a passion
Description
Permanent lighting 2 xenon Front + 2 Rear (with Brake)

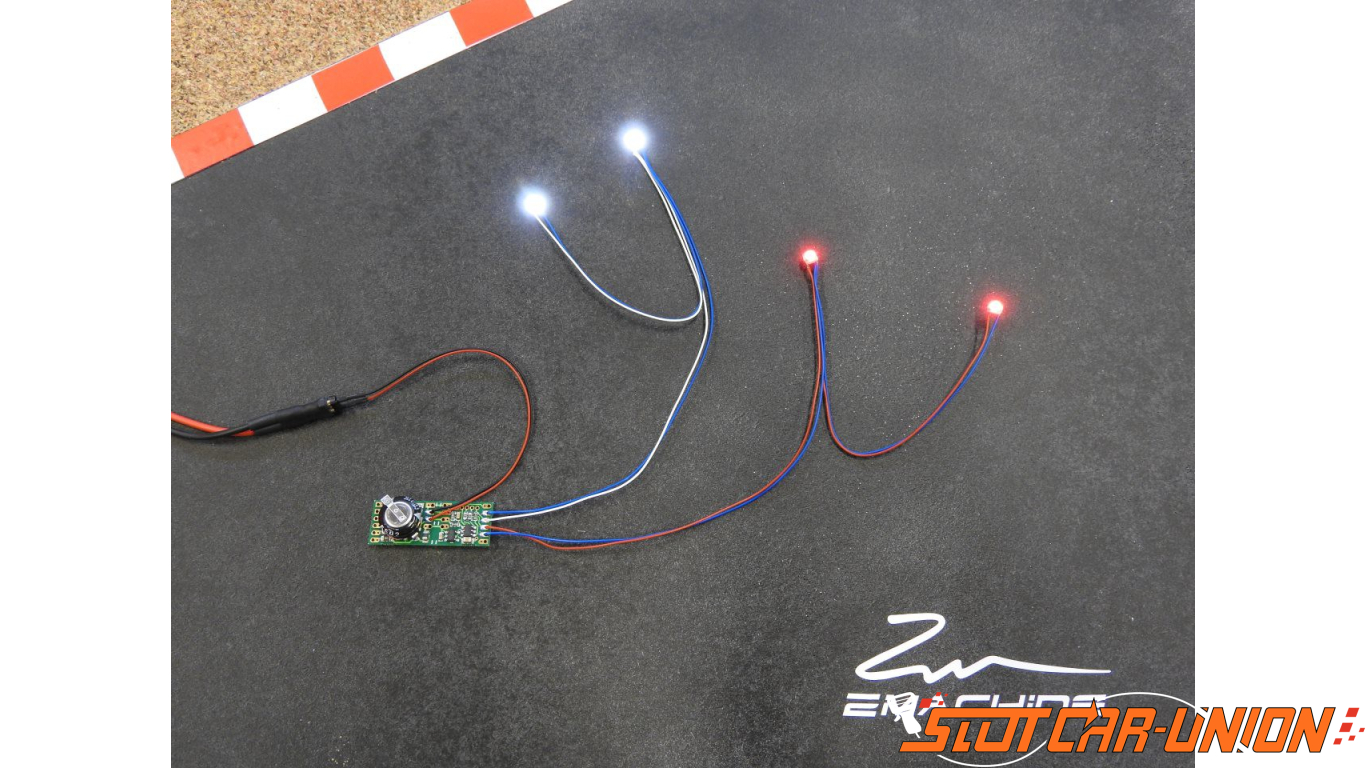

LED front and rear pre-wired lights on longer after car deslots or power is removed. The kit contains an electronic circuit board with large electrolytic capacitor and 4 LEDS : 2 front xenon (slightly bluish cool white 6500°K), 2 rear lights with integrated brake lights.
Fast warning/blinking on front and taillights alternately after 2 secondes standby (faster and therefore more visible flashing).
Installs easily in most 1/24 slot cars.
Features :
- Reverse voltage & overcurrent protection
- Stabilized power head & tail lights (w. energy backup).
- High intensity brake lights.
- Head & Tail lights fast warning on idle after 2 sec.
Main characteristics :
- Dimensions (L x l x h) : 29 x 10 x 6 mm max (w. supercap)
- Weight : 2.85gr (w. power conn & supercap)
- Power supply : min 8Vdc/ac - Max 25Vdc/ac (Davic compatible)
- Power consumption : Max 75mA peak - 15mA continuous (@12.8Vdc)
- Lighting backup : > 2 minutes.
Z | Zmachine | |||
M | Advanced light kits - codification | |||
1 | Serie : | 1 = Standard | ||
6 | Type : | 6 = RTM (ready to mount in the car) | ||
5 | Function : | 1 = Alternated fast warning on front & on rear, integrated combined brake | ||
Front color : | Default = Xenon | |||
LED type : | Default = SMD | |||
Front quantity : | Default =2 | |||
Rear quantity : | Default = 2 | |||
Scale : | Default = 1/24 |
Technical sheet
Color
Xenon
Lighting
Headlights, tail lights and brake lights
Feux avant
2
Feux arrière
2
Echappement
Sans
Freins
Avec
Warning clignotant
Avec
Scale
1:24
