1:32 Scale 1:32
25,90 €
Tax included
You accumulate 0.75 € by buying this product
Description
Permanent lighting 2 xenon Front + 2 Rear (with Brake)

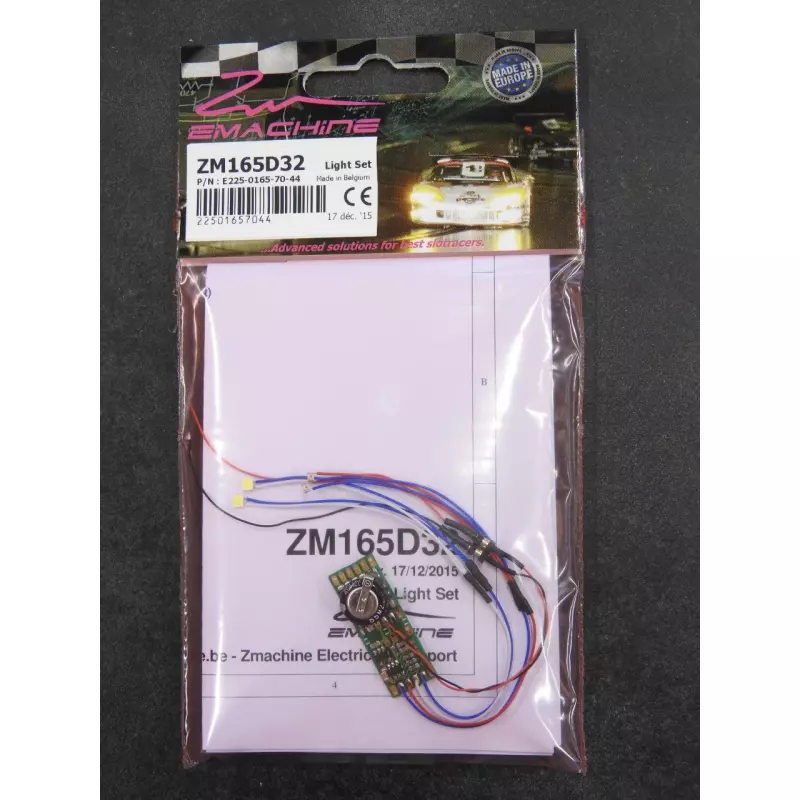

LED front and rear pre-wired lights on longer after car deslots or power is removed. The kit contains an electronic circuit board with large electrolytic capacitor and 4 LEDS : 2 front xenon (slightly bluish cool white 6500°K), 2 rear lights with integrated brake lights.
Fast warning/blinking on front and taillights alternately after 2 secondes standby (faster and therefore more visible flashing).
Installs easily in most 1/32 slot cars.
Features :
- Reverse voltage & overcurrent protection
- Stabilized power head & tail lights (w. energy backup).
- Combined & integrated brake lights w. twin small case 0805 super red rear leds.
- Head & Tail lights alternate fast warning on idle after 2 sec.
- High intensity, robust & lightweight small case front Xenon leds with 1.7mm dia. dome.
- Perfect fitting GT or LMP 1/32 scale.
Main characteristics :
- Dimensions (L x l x h) : 29 x 10 x 6 mm max (w. supercap)
- Weight : 2.42gr (w. power conn & supercap)
- Power supply : min 8Vdc/ac - Max 25Vdc/ac (Davic compatible)
- Power consumption : Max 85mA peak - 12mA continuous (@12.8Vdc)
- Lighting backup : > 2 minutes.
| Z | Zmachine | |||
| M | Advanced light kits - codification | |||
| 1 | Serie : | 1 = Standard | ||
| 6 | Type : | 6 = RTM (ready to mount in the car) | ||
| 5 | Function : | 1 = Alternated fast warning on front & on rear, integrated combined brake | ||
| Front color : | Default = Xenon | |||
| LED type : | Default = SMD | |||
| D | Front quantity : | Default =2 | ||
| Rear quantity : | Default = 2 | |||
| 32 | Scale : | 32 = 1/32 | ||
Technical sheet
Color
Xenon
Lighting
Headlights, tail lights and brake lights
Feux avant
2
Feux arrière
2
Echappement
Sans
Freins
Avec
Warning clignotant
Avec
Scale
1:32
Questions
If you have any questions regarding the product, feel free to post below. Other consumers may also provide you with additional information. Log in to your member area in order to post or answer a question.
Ask a question
Asked bypatrice, on 08/02/2017
J'ai reçu deux kits Zmachine… pouvez vous m'expliquer comment brancher les deux fils d'alimentation et quel produits utilisés pour fixer les diodes d'éclairage ?
Answer bySlot Car-Union
Il faut brancher les fils rouge et noir sur les polarités + et - du moteur, là où arrivent les câbles d'alimentation. Pour fixer les leds le mieux est d'utiliser un pistolet à colle chaude transparente.
