Expertise and quality of model making at the service of a passion
1:32 Scale 1:32
€34.90
Tax included
You accumulate 1.02 € by buying this product
Description
Permanent lighting 4 warm Front + 2 Rear (with Brake) + 2 Exhaust

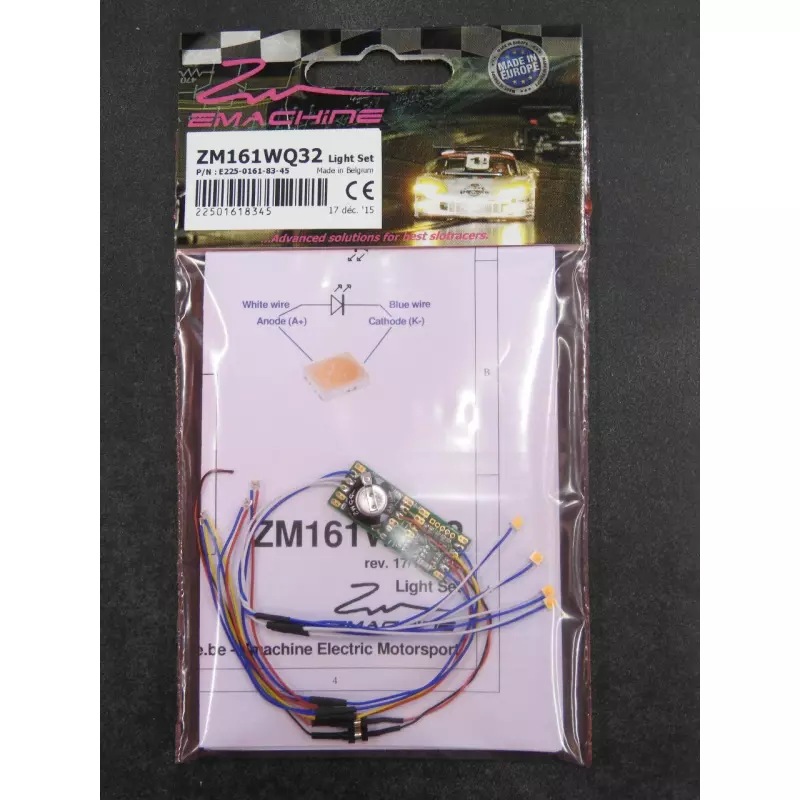

LED front and rear pre-wired lights on longer after car deslots or power is removed. The kit contains an electronic circuit board with large electrolytic capacitor and 8 LEDS : 4 front warm white (2700°K), 2 rear lights with integrated brake lights and 2 exhaust flame simulation.
Warning/blinking taillights after 2 secondes standby
Installs easily in most 1/32 slot cars.
Features :
- Reverse voltage & overcurrent protection.
- Stabilized power head & tail lights (w. energy backup).
- Combined & integrated brake lights w. twin small case 0805 super red rear leds.
- Warning/blinking taillights after 2 sec stby.
- Exhaust flame simulation w. twin small case 0603 high intensity yellow leds.
- High intensity, robust & lightweight small case front Xenon leds with 1.7mm dia. dome.
- Perfect fitting GT or LMP 1/32 scale.
Main characteristics :
- Dimensions (L x l x h) : 29 x 10 x 6 mm max (w. supercap).
- Weight : 2.98 gr (w. power conn & supercap).
- Power supply : min 8Vdc/ac - Max 25Vdc/ac (Davic compatible).
- Power consumption : Max 85mA peak - 17mA continuous (@12.8Vdc).
- Lighting backup : > 2 minutes.
| Z | Zmachine | |||
| M | Advanced light kits - codification | |||
| 1 | Serie : | 1 = Standard | ||
| 6 | Type : | 6 = RTM (ready to mount in the car) | ||
| 1 | Function : | 1 = Brake & Warning on rear + twin exhausts | ||
| W | Front color : | W = Warm | ||
| LED type : | Default = SMD | |||
| Q | Front quantity : | Q = Quad (4) | ||
| Rear quantity : | Default = 2 | |||
| 32 | Scale : | 32 = 1/32 | ||
Technical sheet
Color
Blanc chaud
Lighting
Head, tail, brake and exhaust
Feux avant
4
Feux arrière
2
Echappement
2
Freins
Avec
Warning clignotant
Avec
Scale
1:32
