Zmachine Light Set ZM162F1N32 Formula 1 NSR
Reference : 225-0162-10-72
1:24 - 1:32 Scale 1:24 - 1:32
€20.90
Tax included
You accumulate 0.60 € by buying this product
Description

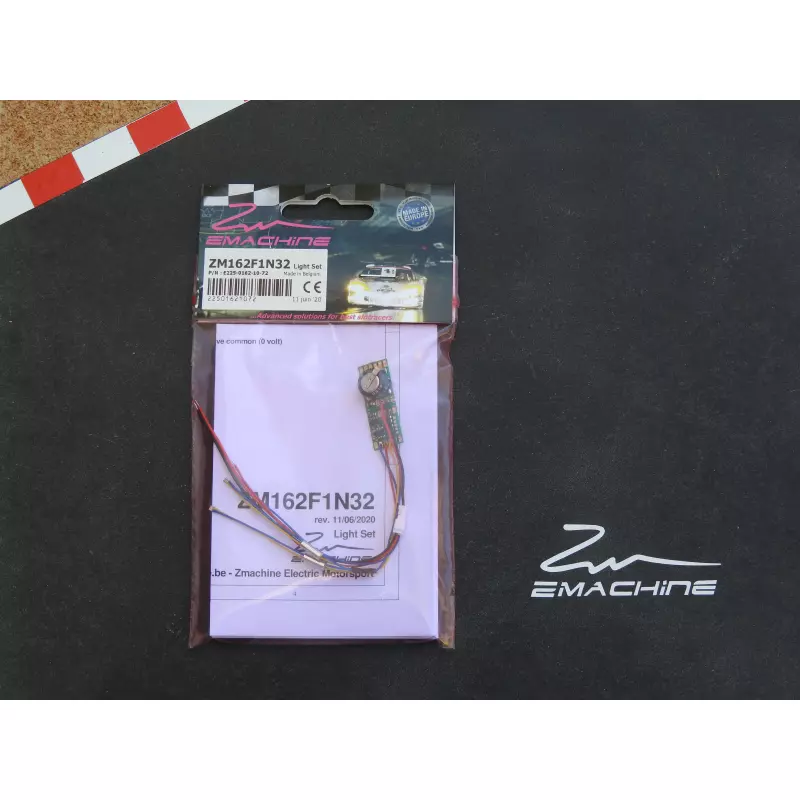

Specific F1 kit for NSR Formula 86/89

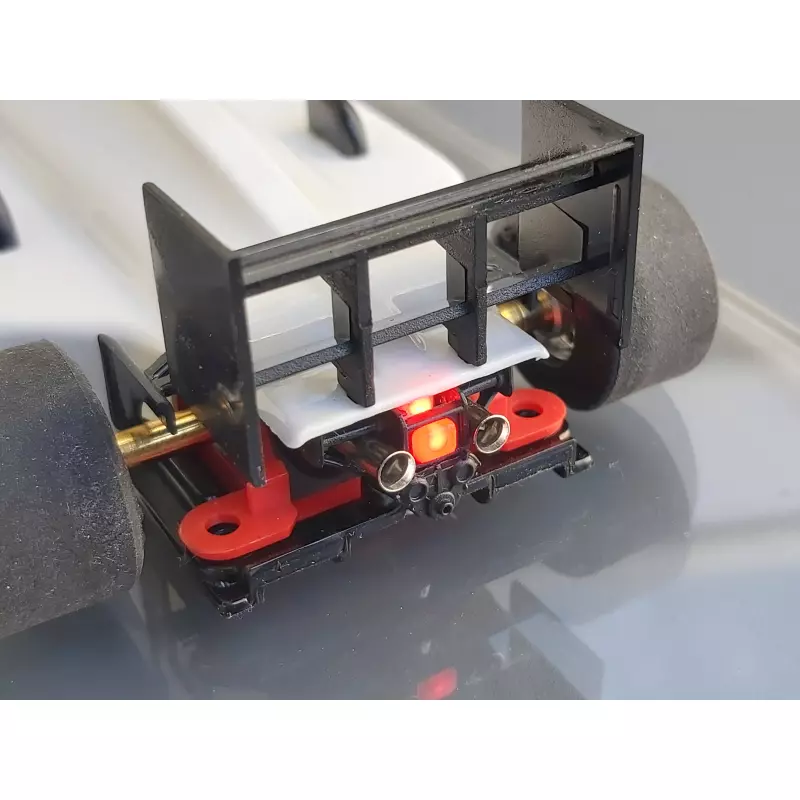

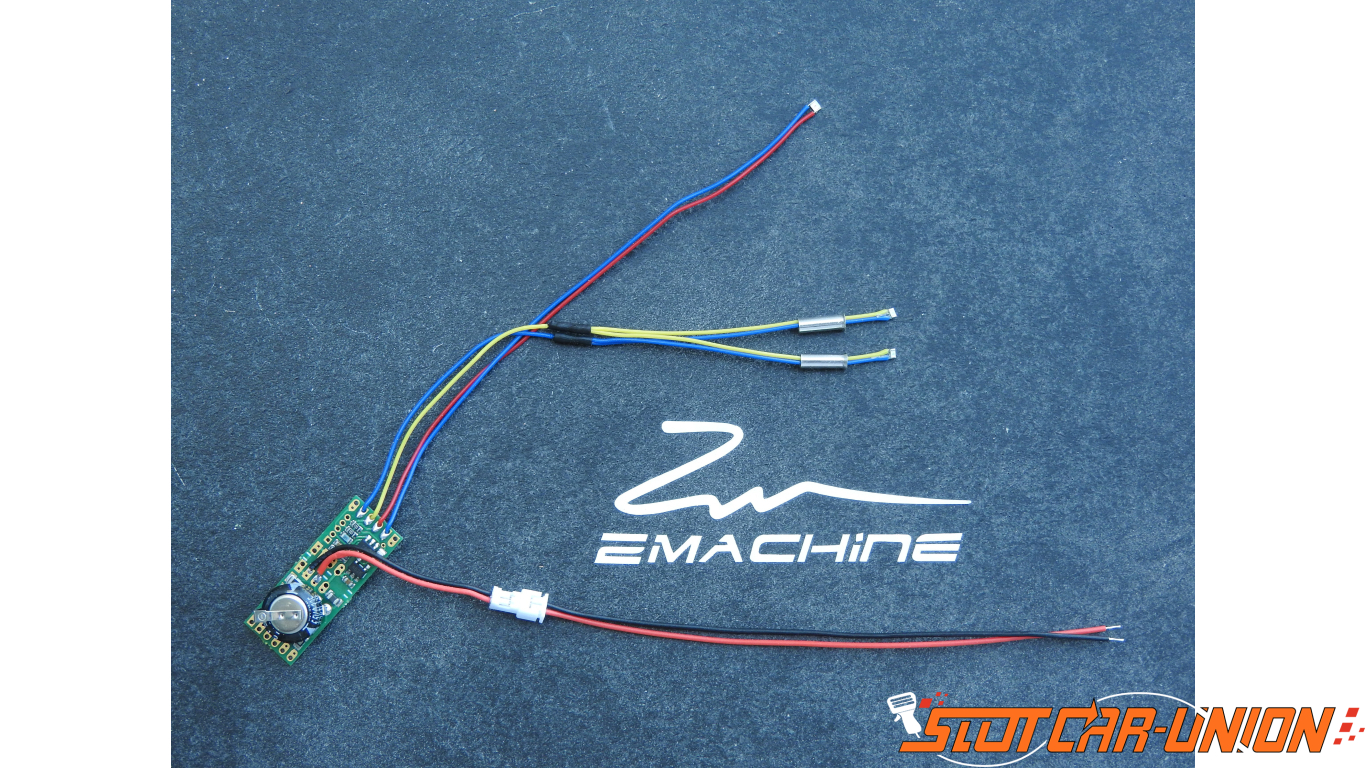

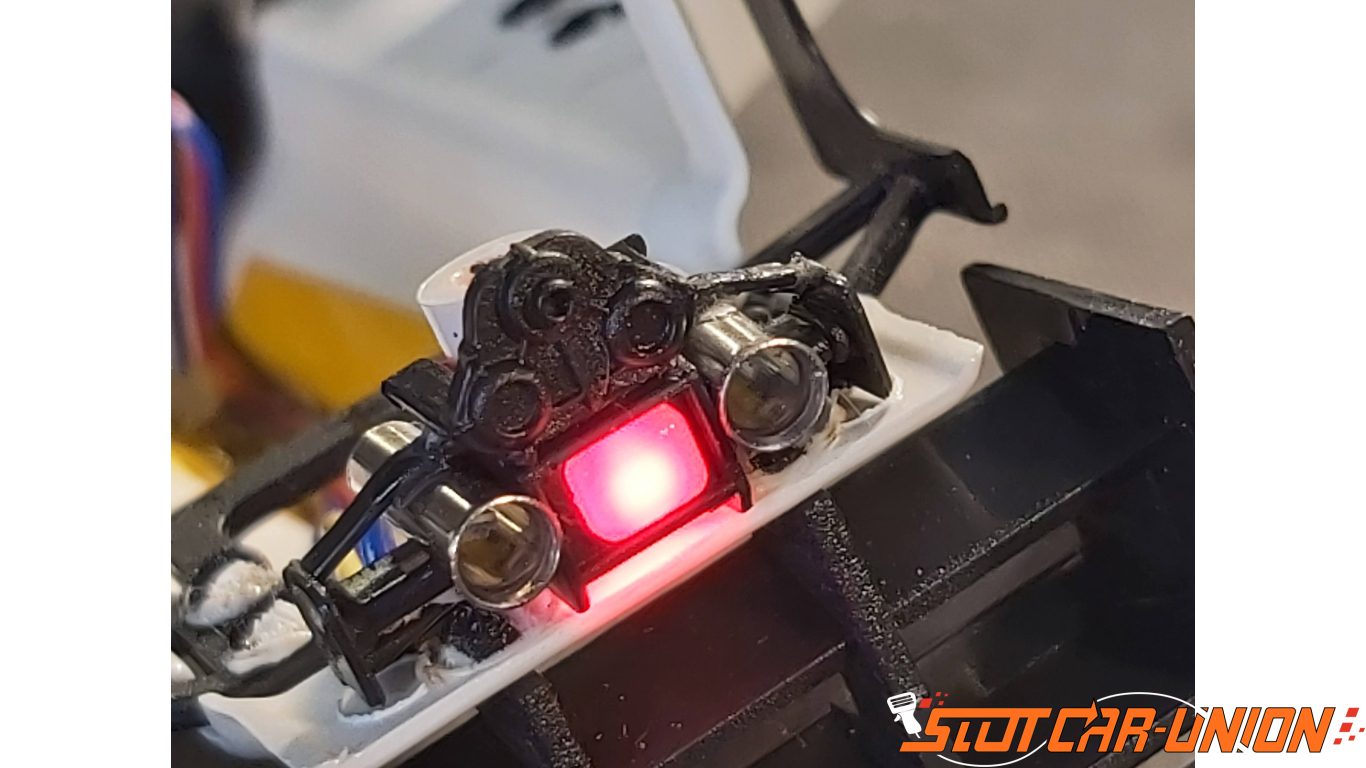

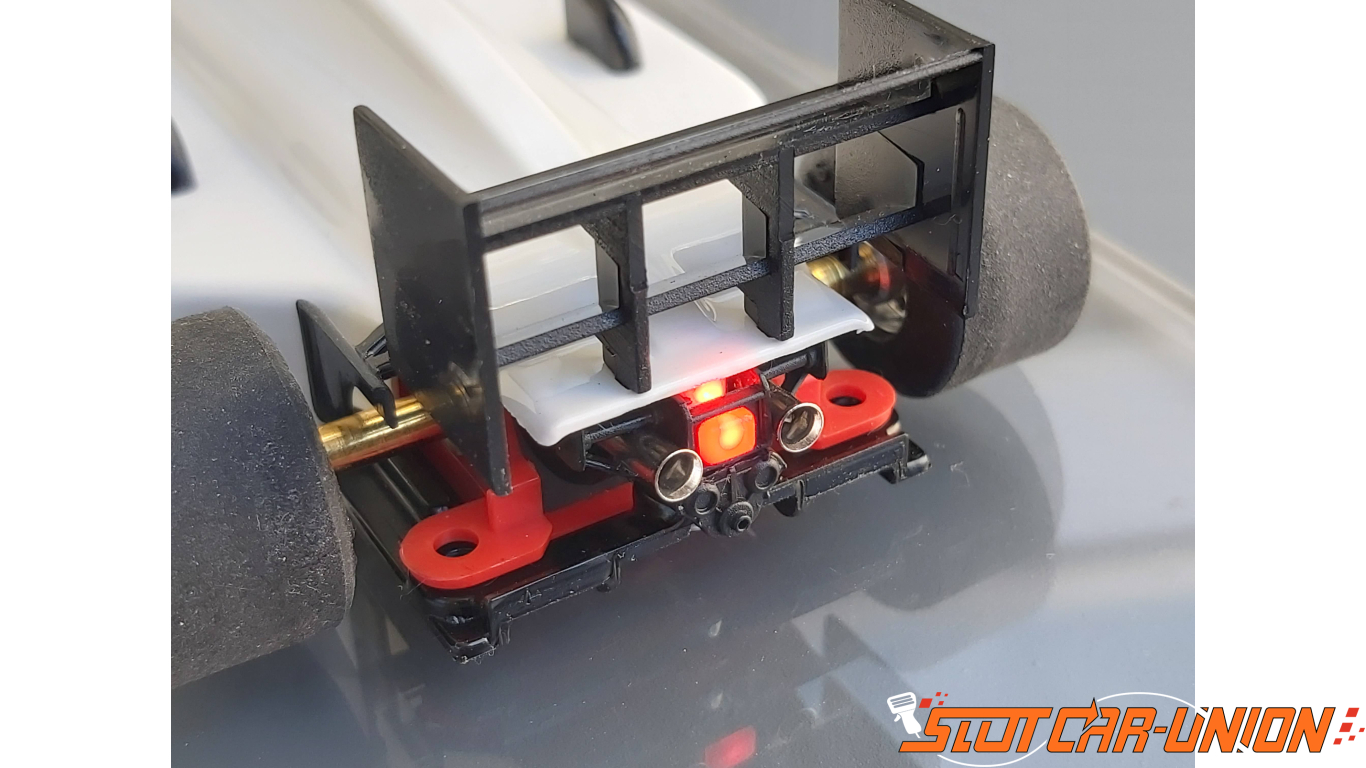

LED front and rear pre-wired lights on longer after car deslots or power is removed. The kit contains an electronic circuit board with large electrolytic capacitor and 3 LEDS : 1 rear light with integrated brake lights and 2 exhaust flame simulation.
Warning/blinking taillight after 2 secondes standby.

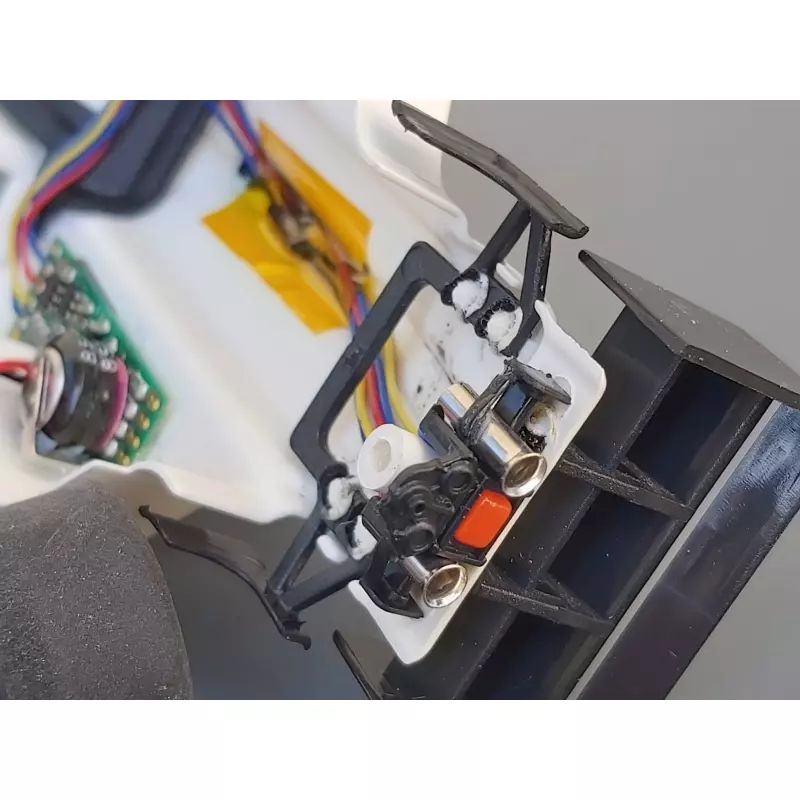

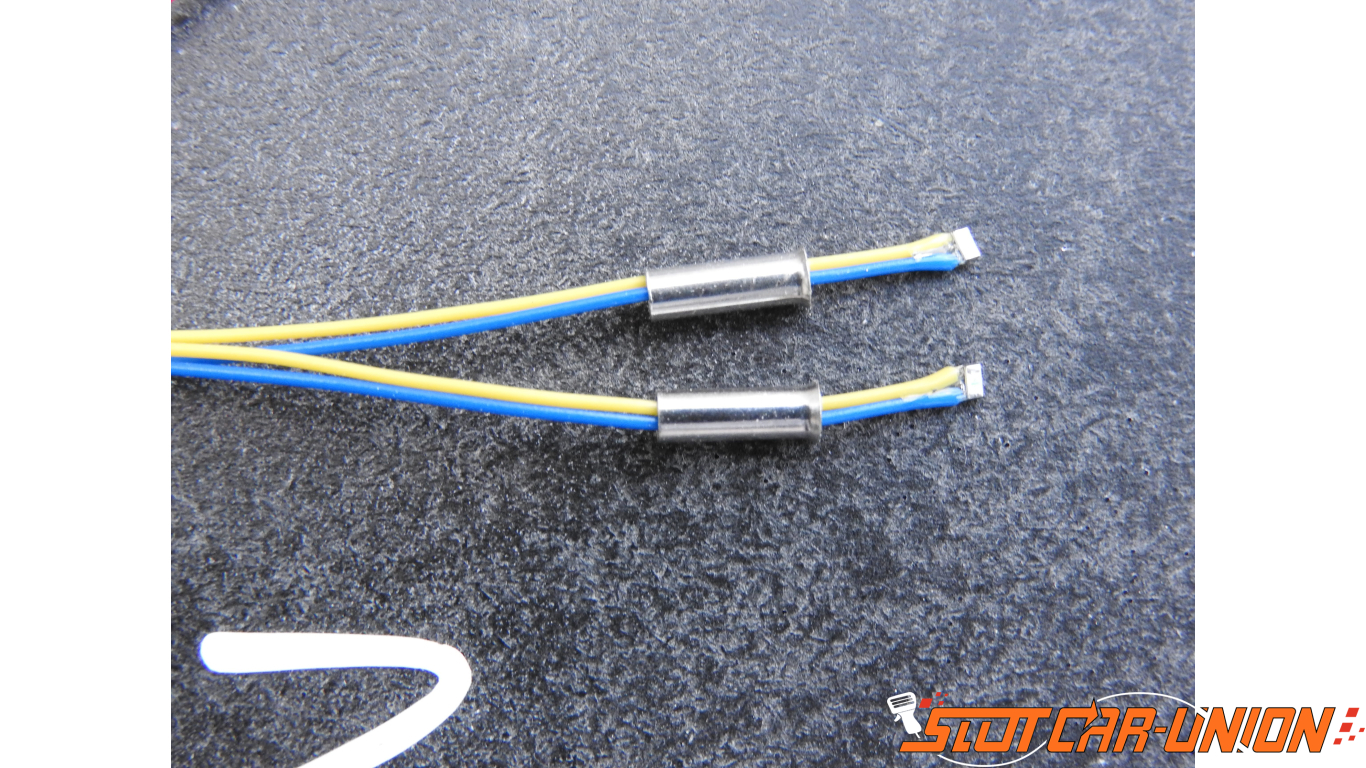

The exhaust pipes are supplied with the kit.

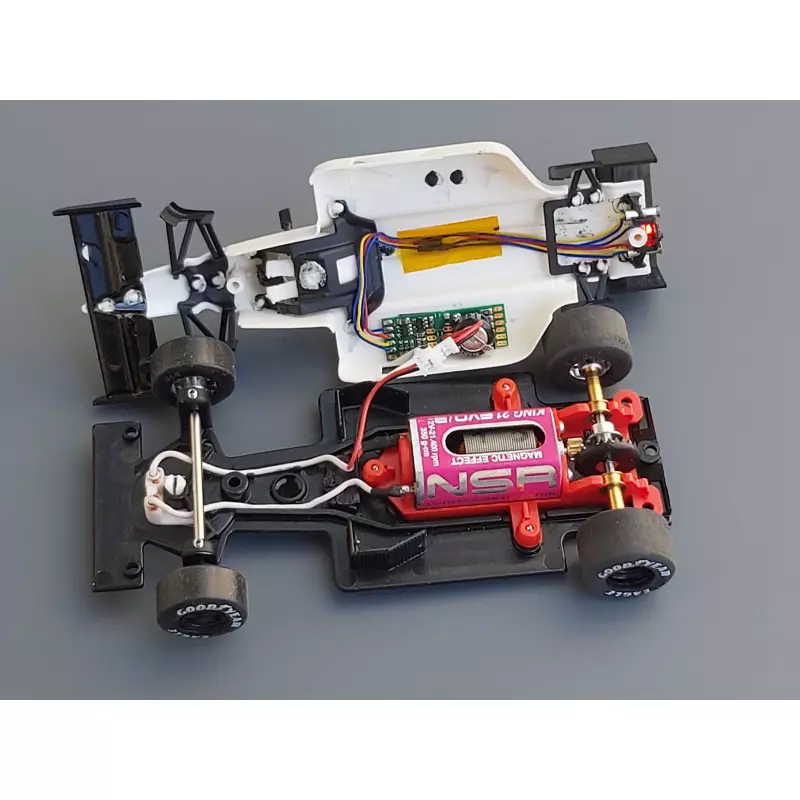

Installs easily in most slot cars.
Features :
- Reverse voltage & overcurrent protection (new polarized connector)

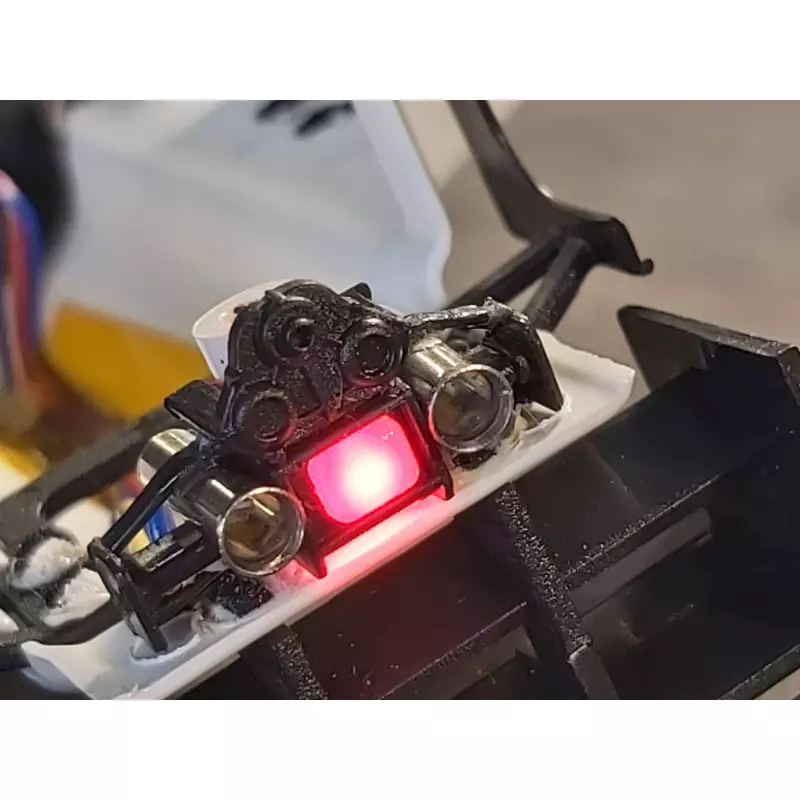

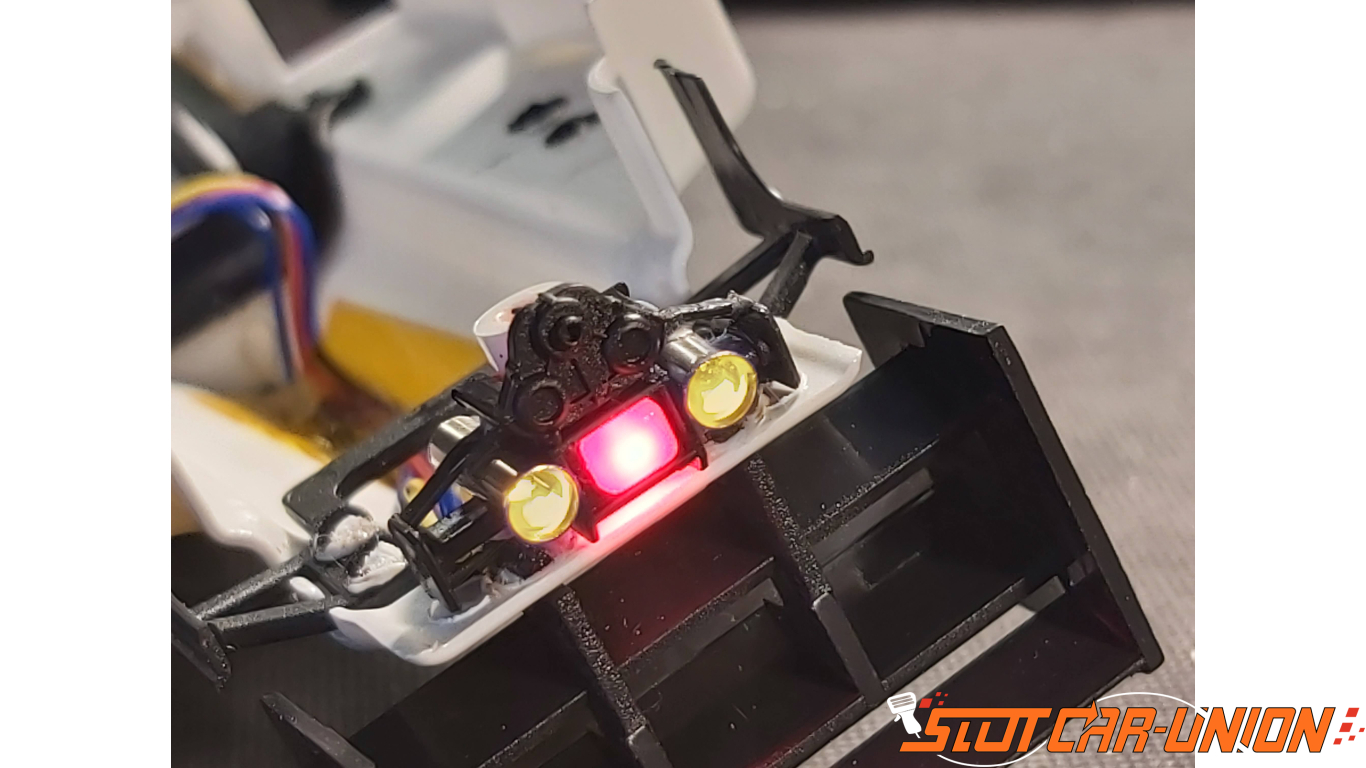

- High intensity brake light with red 0805 led.

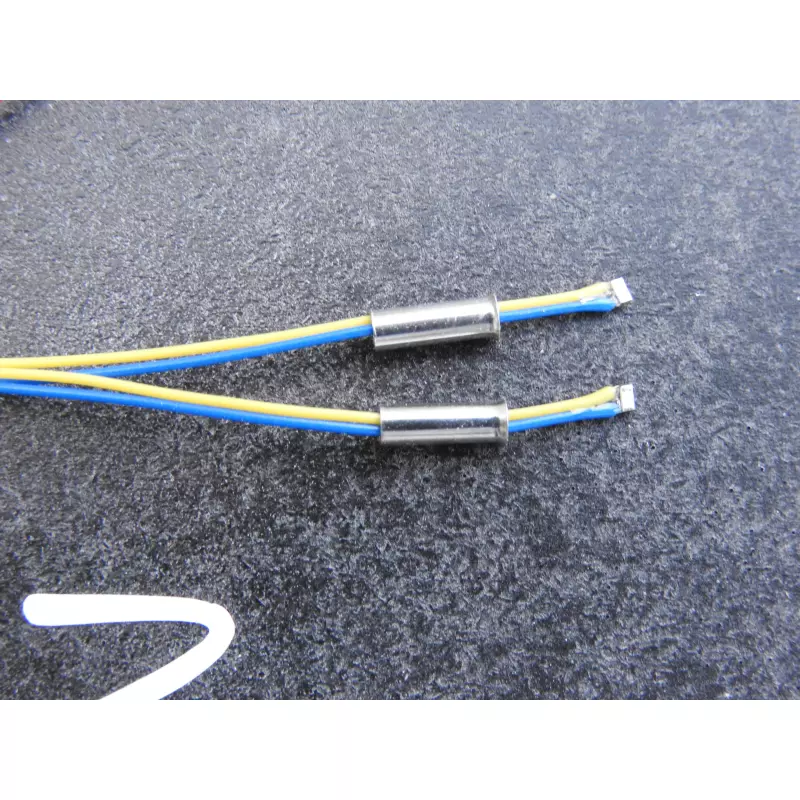

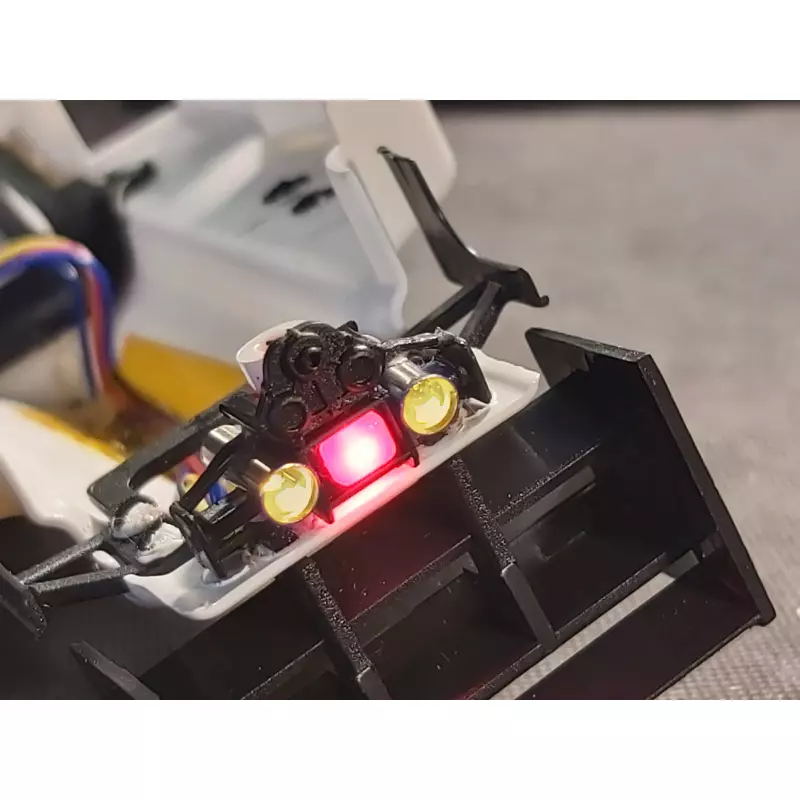

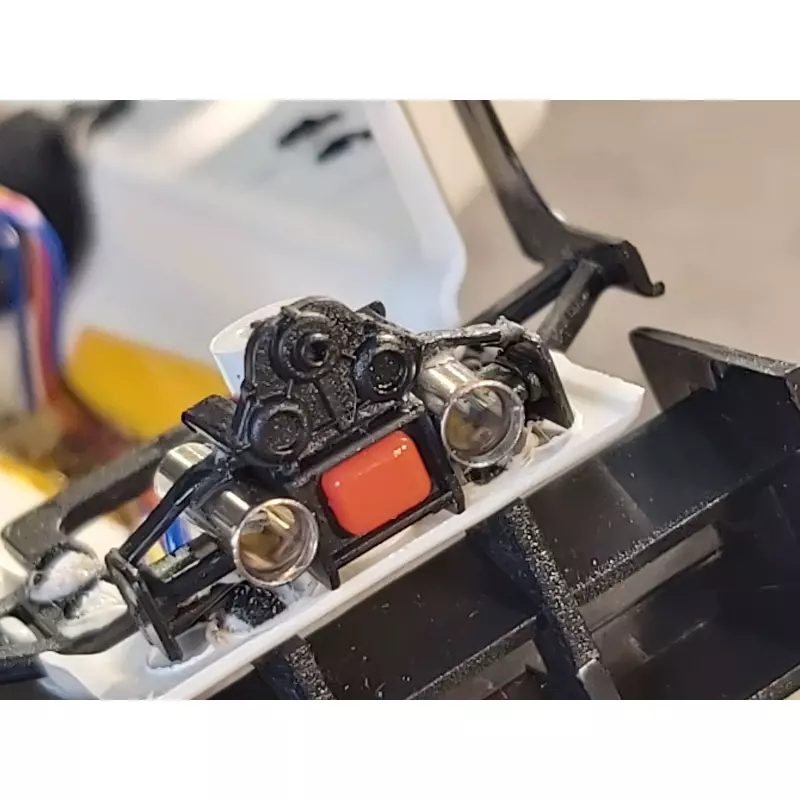

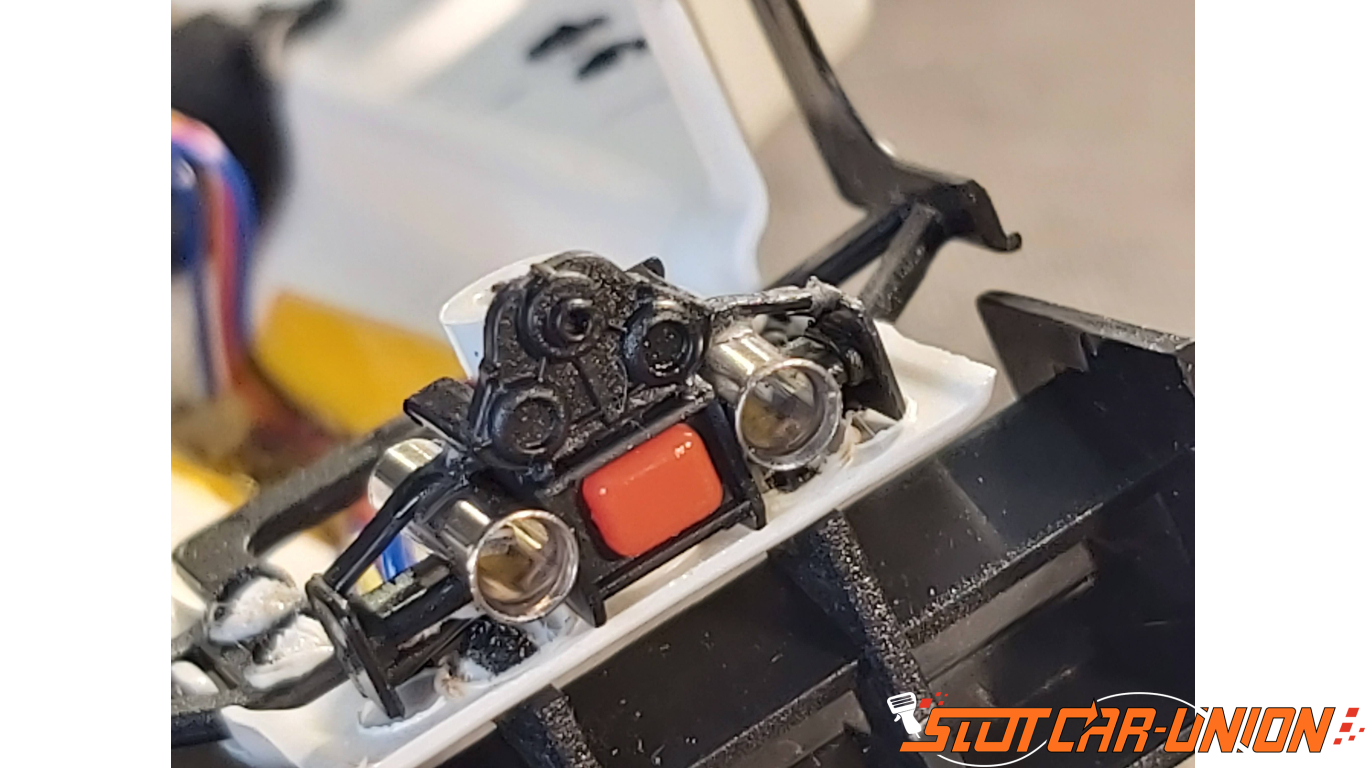

- F1 Exhaust flame simulation w. twin high intensity yellow 0603 leds and exhaust pipe tubes.
- Warning/Flashing brake light on idle after 2 sec.

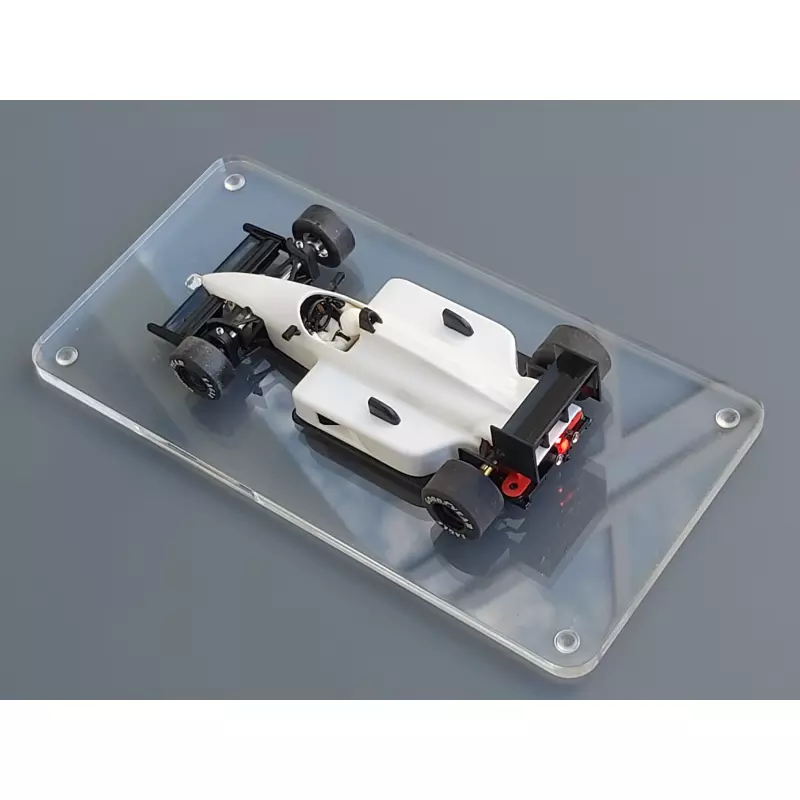

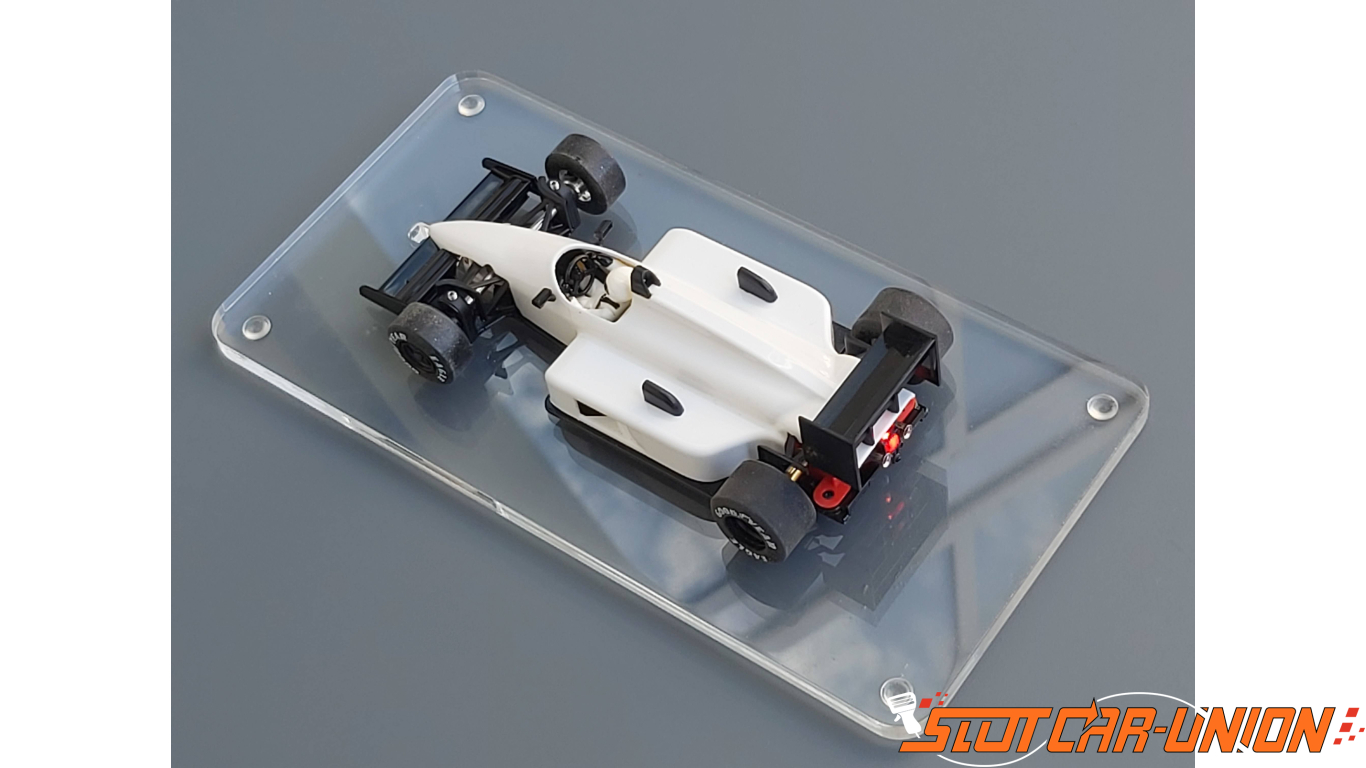

- Perfectly fit NSR Formula 86/89.
Main characteristics :
- Dimensions (L x l x h) : 29 x 10 x 6 mm max (w. supercap)
- Weight : 2.32gr (w. power conn & supercap)
- Power supply : min 8Vdc/ac - Max 25Vdc/ac (Davic compatible)
- Power consumption : Max 75mA peak - 4mA continuous (@12.8Vdc)
- Flashing brake light on idle : > 3 minutes.
| Z | Zmachine | |||
| M | Advanced light kits - codification | |||
| 1 | Serie : | 1 = Standard | ||
| 6 | Type : | 6 = RTM (ready to mount in the car) | ||
| 2F1 | Function : | 2= Brake & Warning on rear + twin exhausts | ||
| LED type : | Default = SMD | |||
| Rear quantity : | 1 | |||
| Scale : | Default = 1/24 | |||
Technical sheet
Lighting
Tail lights, brake and exhaust
Feux avant
Sans
Feux arrière
1
Echappement
2
Freins
Avec
Warning clignotant
Avec
Scale
1:24 - 1:32
