Slot.it CH32e Ready to Run HRS2 Anglewinder Chassis 1mm Offset

The HRS chassis is a fully configurable, universal plastic chassis for slot cars. It comprises four main parts : main chassis, front chassis, motor mount and body mounting means.

Adjustable Wheelbase
The front chassis can be positioned freely within a wheelbase between 64 and 90 mm.

Selectable Front Axle Position
The front axle can be placed in one of two possible positions, one of which completely adjustable, making it easy to adjust the distance from the pickup.

Flexible Assembly System
The chassis and the body can be joined with either four mounting posts and cups (HRS1 style), two three-posts sidebars, or, on some
cars, where possible, with the car's own screw holes.

New from the CH32d release :

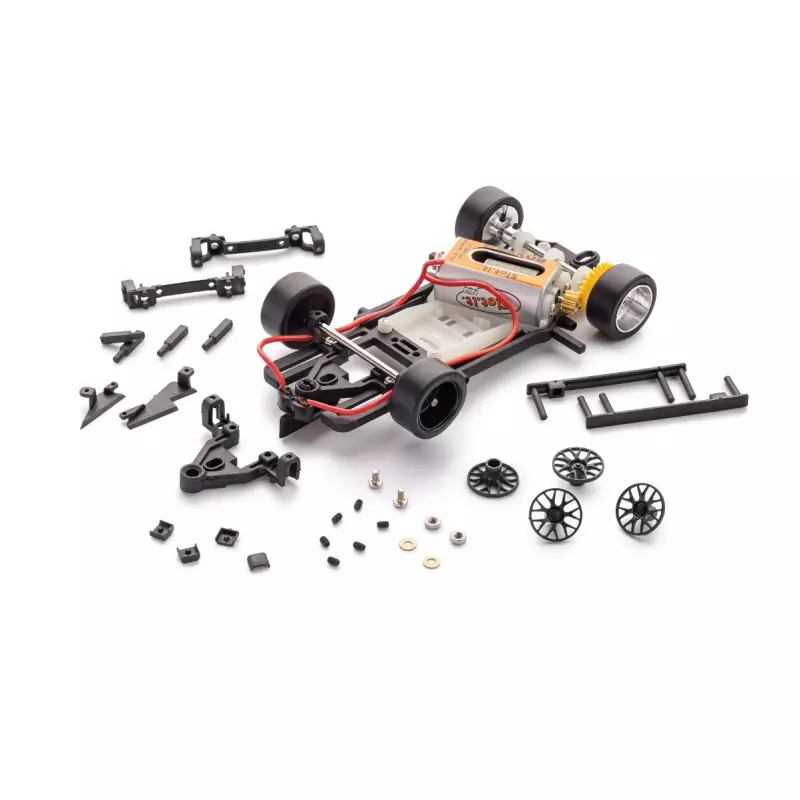

The CH32d kit includes :

• x1 CH74 - MEDIUM Anglewinder LMP 1,0mm Offset Boxer/Flat motor mount - EVO6
• x1 MN08ch Boxer/2 21500 rpm 340g*cm different opening case
• x1 GA1628-Pl Crown 28 teeth Ø16mm Plastic for anglewinder
• x1 PI6712o Anglewinder Pinions 12 teeth Ø6,75mm
• x1 CH66 Clip Racing Pickup
• x2 FRONT Hubs Ø17,3 x 8,2mm
• x2 REAR Hubs Ø17,3 x 9,75mm
