Expertise and quality of model making at the service of a passion
1:32 Scale 1:32
26,90 €
Tax included
You accumulate 0.78 € by buying this product
Description
Permanent lighting 2 warm Front + 2 Rear (with Brake)

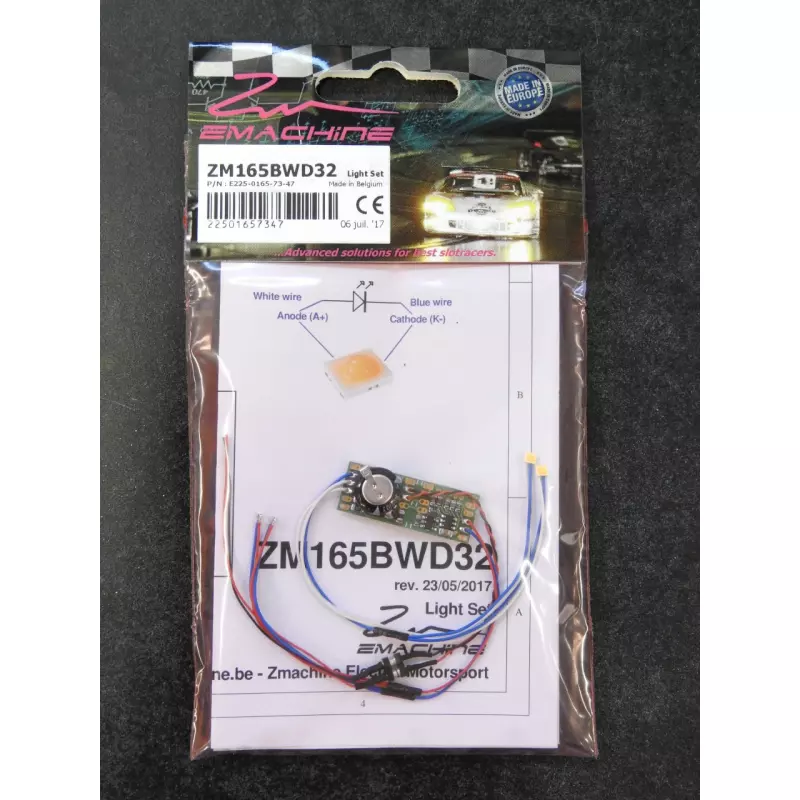

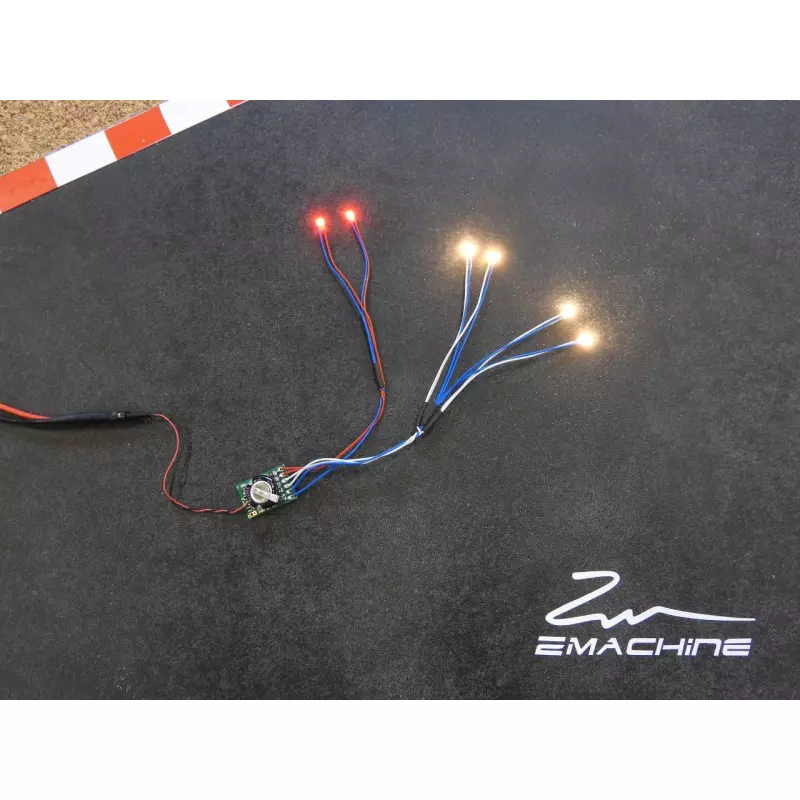

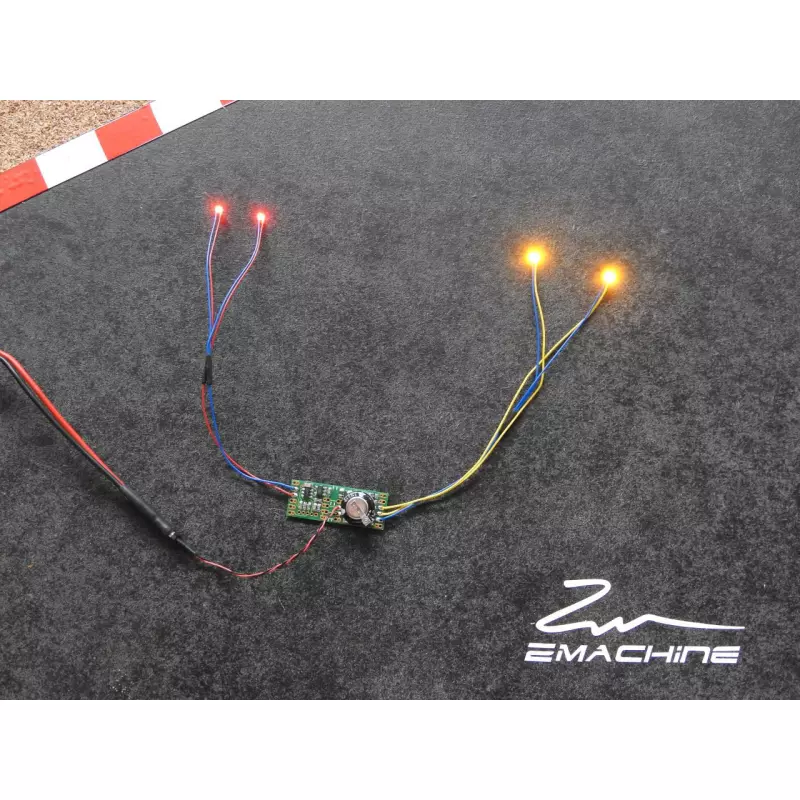

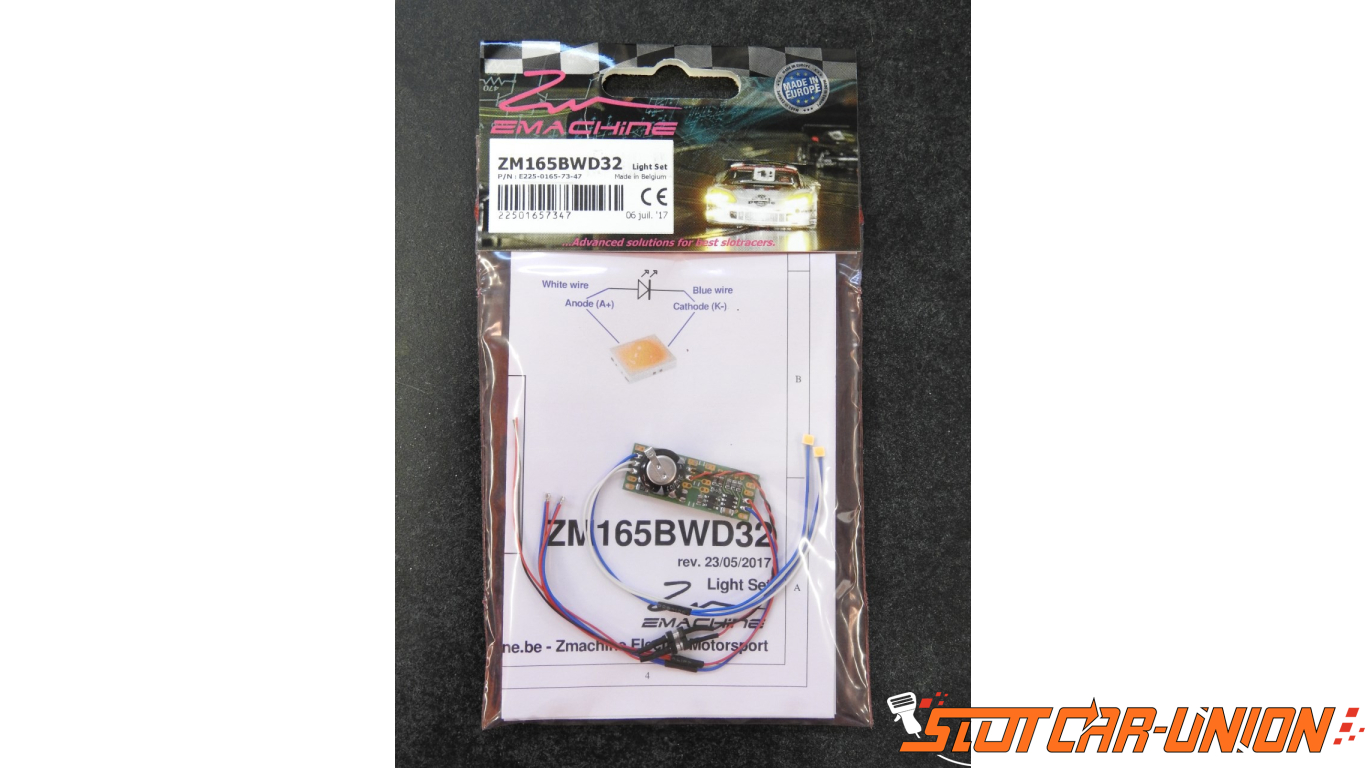

LED front and rear pre-wired lights on longer after car deslots or power is removed. The kit contains an electronic circuit board with large electrolytic capacitor and 4 LEDS : 2 front warm, 2 rear lights with integrated brake lights.
Installs easily in most 1/32 slot cars.
Features :
- Reverse voltage & overcurrent protection
- Stabilized power head & tail lights (w. energy backup).
- Combined & integrated brake lights w. twin small case 0805 super red rear leds.
- High intensity, robust & lightweight small case front Yellow leds with 1.7mm dia. dome.
- Perfect fitting Classics 1/32 scale.
Main characteristics :
- Dimensions (L x l x h) : 29 x 10 x 6 mm max (w. supercap)
- Weight : 2.46 gr (w. power conn & supercap)
- Power supply : min 8Vdc/ac - Max 25Vdc/ac (Davic compatible)
- Power consumption : Max 85mA peak - 18mA continuous (@12.8Vdc)
- Lighting backup : > 2 minute.
| Z | Zmachine | |||
| M | Advanced light kits - codification | |||
| 1 | Serie : | 1 = Standard | ||
| 6 | Type : | 6 = RTM (ready to mount in the car) | ||
| 5B | Function : | 5B = Integrated combined brake | ||
| W | Front color : | W = Warm | ||
| LED type : | Default = SMD | |||
| D | Front quantity : | Default =2 | ||
| Rear quantity : | Default = 2 | |||
| 32 | Scale : | 32 = 1/32 | ||
Technical sheet
Color
Blanc chaud
Lighting
Headlights, tail lights and brake lights
Feux avant
2
Feux arrière
2
Echappement
Sans
Freins
Avec
Warning clignotant
Sans
Scale
1:32
