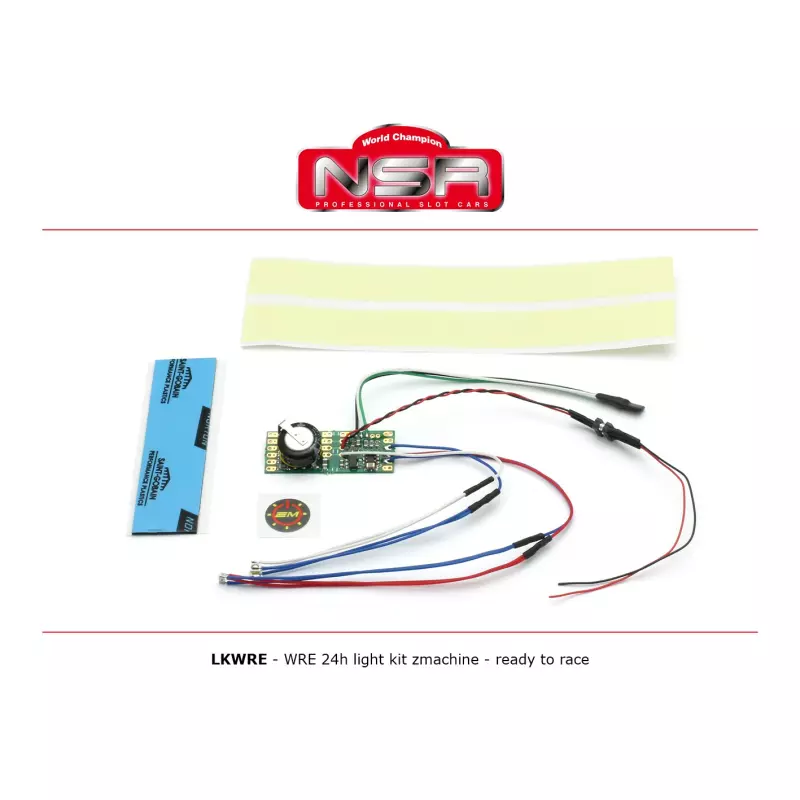

NSR LKWRE WRE 24h light kit zmachine - ready to race
Reference : NSR-LKWRE
Description
Permanent lighting 2 xenon Front + 2 Rear (with Brake) + Magnetic Switch

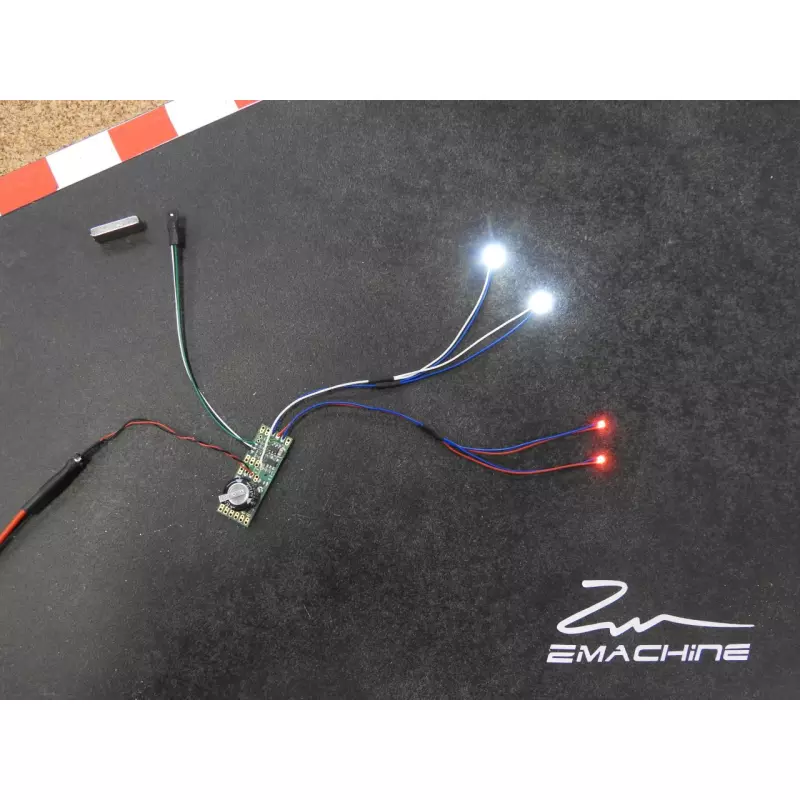

LED front and rear pre-wired lights on longer after car deslots or power is removed. The kit contains an electronic circuit board with large electrolytic capacitor and 4 LEDS : 2 front xenon (slightly bluish cool white 6500°K), 2 rear lights with integrated brake lights.
Fast warning/blinking on front and taillights alternately after 2 secondes standby (faster and therefore more visible flashing).
Magnetic sensor that switches between day and night modes and vice versa.
Installs easily in most 1/32 slot cars.
Features :
- Lightweight kit with low power consumption, lower power supply voltage.
- Protection against polarity inversion and over-current.
- Stabilized power supply for constant brightness.
- High-performance energy storage (SuperCap).
- Micro magnetic switch for day/night switching (enabled during Warning phase only).
- High intensity integrated braking function on tail Leds.
- Fast and alternate flashes forward / backward after stop or run out after 2 sec (for 30 sec).
- Very short standby flashes on the rear LEDs for +/- 30min.
- Store day/night mode on non-volatile memory.
Main characteristics :
- Dimensions (L x l x h) : 29 x 11 x 6 mm max (w. supercap)
- Weight : 2.78gr (switch, male power connector and supercap included)
- Power supply : min 6Vdc/ac - Max 20Vdc/ac (Digital compatible)
- Power consumption : 95mA peak - 22mA continuous (@12.8Vdc)
- Lighting backup : 30 seconds in "Fast Warning" mode and >30 minutes in standby mode.
Z | Zmachine | |||
M | Advanced light kits - codification | |||
1 | Serie : | 1 = Standard | ||
6 | Type : | 6 = RTM (ready to mount in the car) | ||
5MS | Function : | 5MS = Alternated fast warning on front & on rear, integrated combined brake + Magnetic Switch | ||
Front color : | Default = Xenon | |||
LED type : | Default = SMD | |||
t quantity : | Default =2 | |||
LR | Rear quantity : | Default = 2 "Long Rear" rear wiring increased to 140mm instead of 110mm | ||
32 | Scale : | 32 = 1/32 |
Technical sheet
Color
Xenon
Lighting
Headlights, tail lights and brake lights
Feux avant
2
Feux arrière
2
Echappement
Sans
Freins
Avec
Warning clignotant
Avec
Scale
1:32
