€166.58

You accumulate 4.98 € by buying this product

Out of stock

- +

Ce produit n'est actuellement plus disponible. Souhaitez-vous être informé par e-mail de sa disponibilité ?

Description

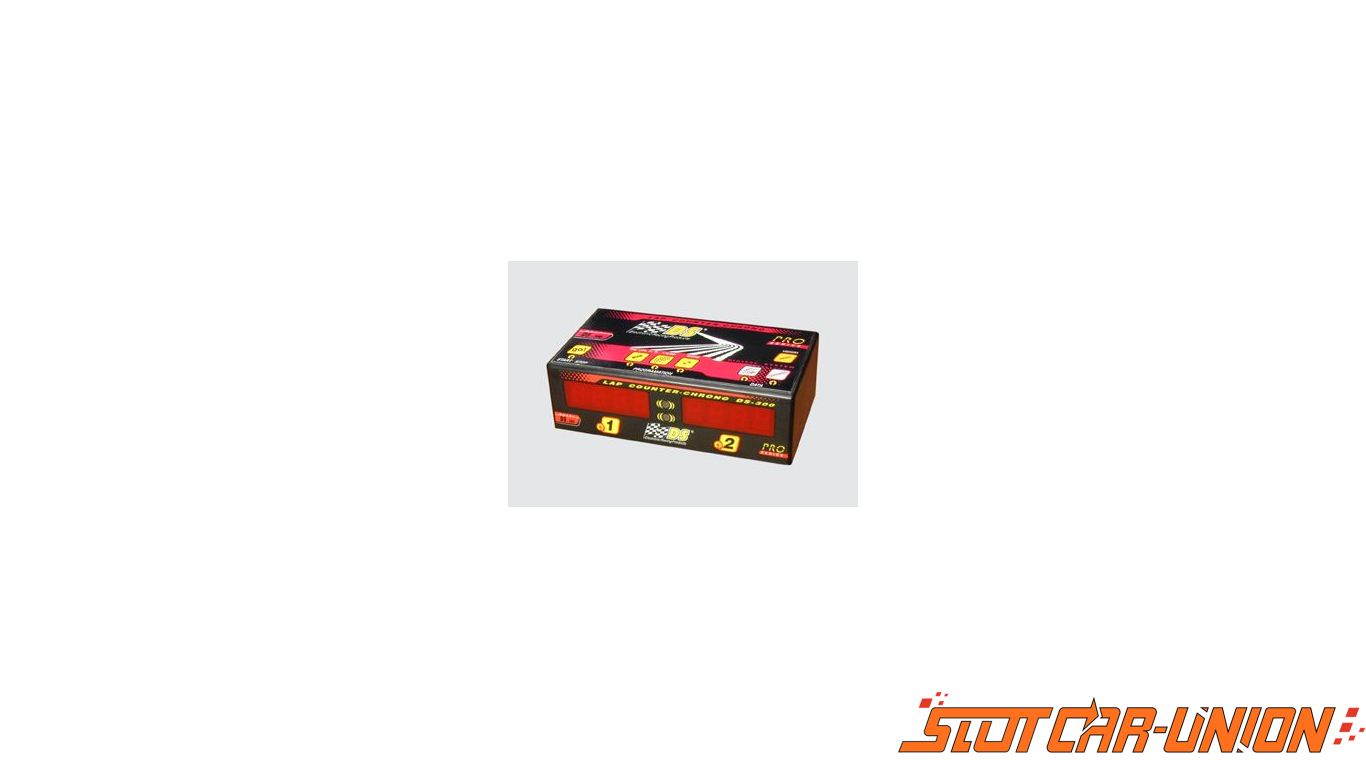

Modular lap couter from 2 to 8 lanes

Works with any kind of slot track on the market !

  • Modular lap couter from 2 to 8 lanes, especially SPEED and ENDURANCE races.
  • Lap counter especially suitable for 4 or more track.
  • Easy connection to your card control system "DS Control" (ref. DS-0062).

Technical Data :

  • 11 different programmes for races : Endurance, Rally-Slot, GT, Training, F-1, etc... combined with the different track and control systems.
  • 4 digits per lane. Quick and easy reading of timing and laps, with one only button.
  • PERMANENT programming. The device memorises the programming until next change (although it may be disconnected).
  • Time programming : From 10 seconds to 24 h.
  • Lap programming : From 1 to 9999 laps.
  • Minimal time programming between lap and lap in order to avoid recording more laps due to another car or object. Thus, we can programme a minimal time per lap with a close record to the average time per lap. You will be able to make motor tests with the cable V-shaped (ref. DS-0018), recording the top speed, partial timing of a particular track section.
  • Programming the desired car control system : TOTAL or INDEPENDENT lanes, for any kind of race.
  • Programming the start with power on the track (for instance, keeping an eye on the lights and penalising one lap the car passing under the bridge before the lights are red) or without power on the track (for instance : the traditional system where models start at the same time, due to the control of the "Stop & Go Box” (ref. DS-0021) or "PRO Stop & Go Box" (ref. DS-0061).
  • Track power control : Cars always stop at the end of the race, due to the power cut form the "Stop & Go Box" (ref. DS-0021) or "PRO Stop & Go Box" (ref. DS-0061), if installed.
  • PAUSE option. We can stop the race and the time recorded, so we can continue the race from the same point.
  • Extendable up to 8 lanes.

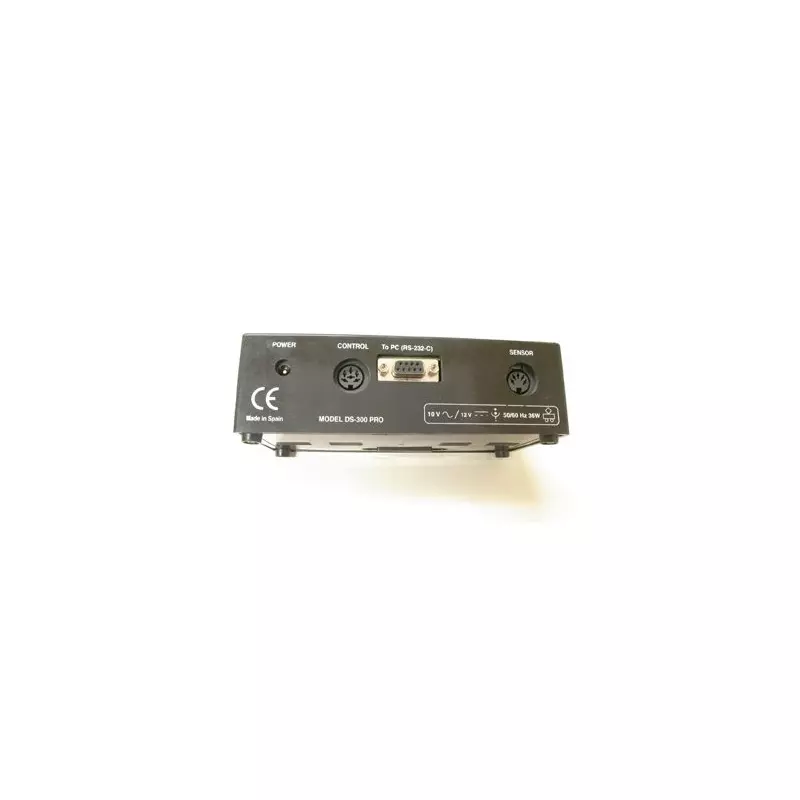

  • RS-232C exit for PC connection. The cable is not supplied with the lap counter ; we recommend the cable manufactured by DS, with reference DS- 0052.
  • Display of :
    - Lap timing of every lane when the car is crossing the sensor.
    - Time spend or time left for the finishing of the race, during or at the end of the race.
    - 3 fastest lap times recorded for each lane during or at the end of the race.
    - Total time recorded at the end of the programmed laps for each lane, at the end of the race.
    - Timing data displayed in : thousands and tenth thousands of a second.
    - Blinking of the winner lane.
    - Blinking of the best lap time record of the race.
  • Red/green lights for visual control of the race start.
  • Acoustic signals for : programming, start, last lap, end of race, pause and fastest lap.
  • Connection to our card readers "DS Card Control" (with a card like the ones used at the telephones) for the control of races, drivers, track renting, etc...

For the correct working of this lap counter you need a power supply of 12 V. maximum and at least 3 A. D/C. We recommend the DS Power Supply (reference DS-0051).
Trade sensor is need to operate. Choose from DS wide range of sensors for many track systems.

Files attached

DS-300 Instruction manual

  • DS-300 Instruction manual

Technical sheet

Compatible Analog

Yes

Compatible Digital

No

Power supply

12 Volts --- 3 Amperes
