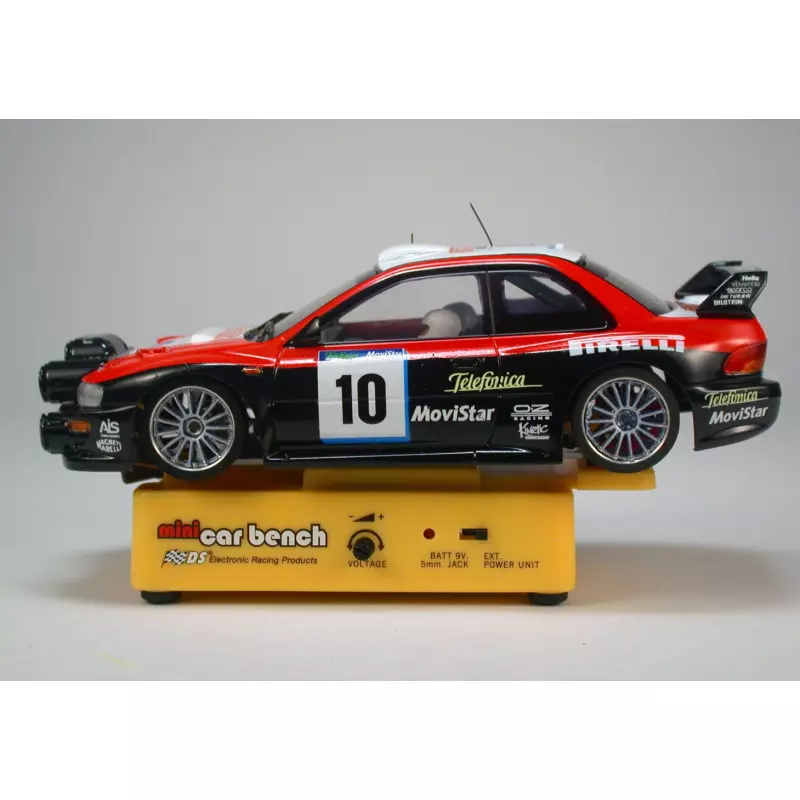

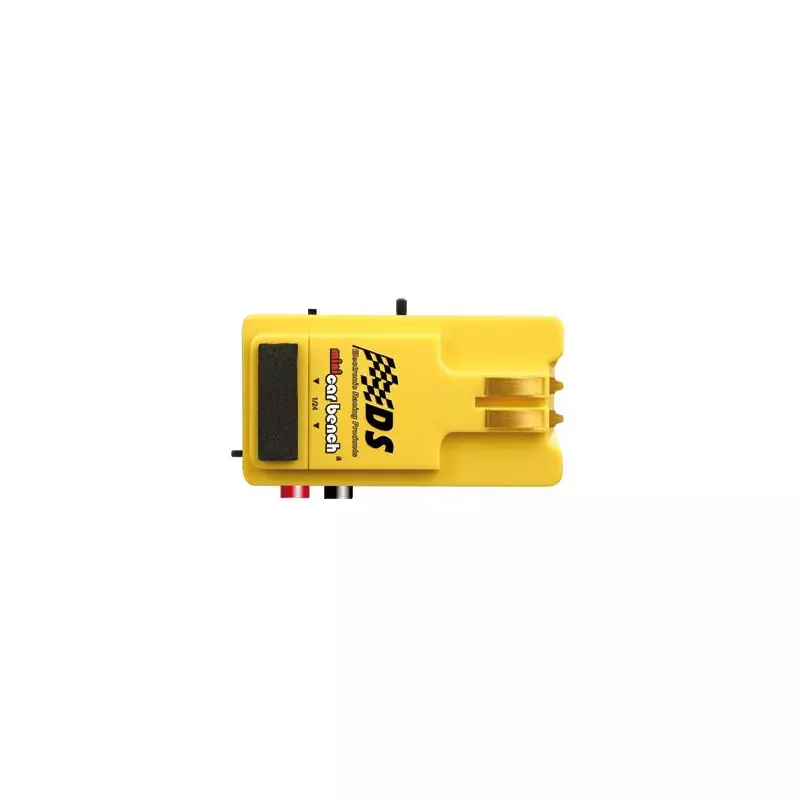

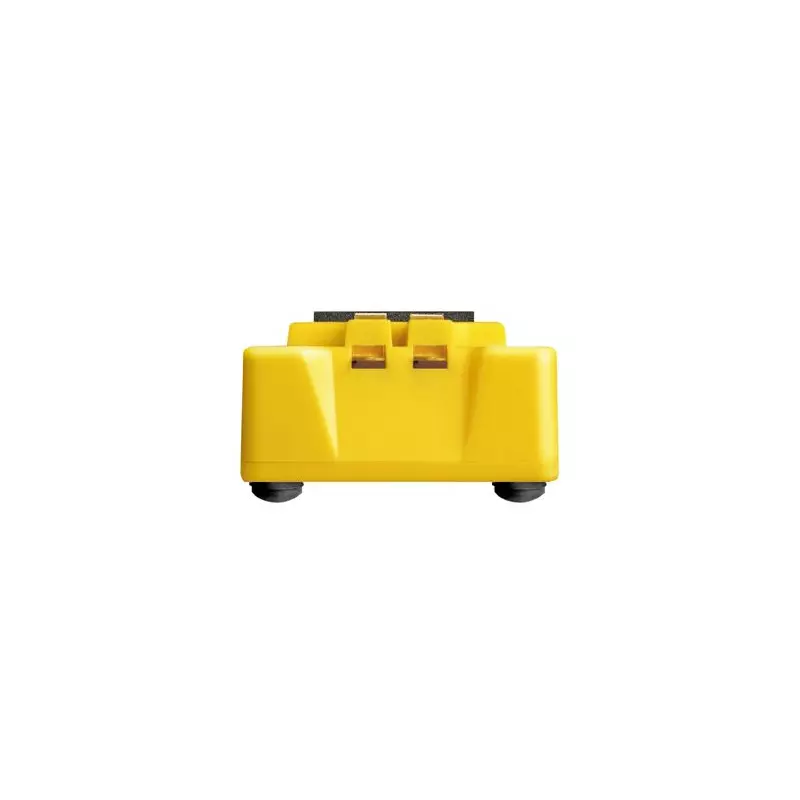

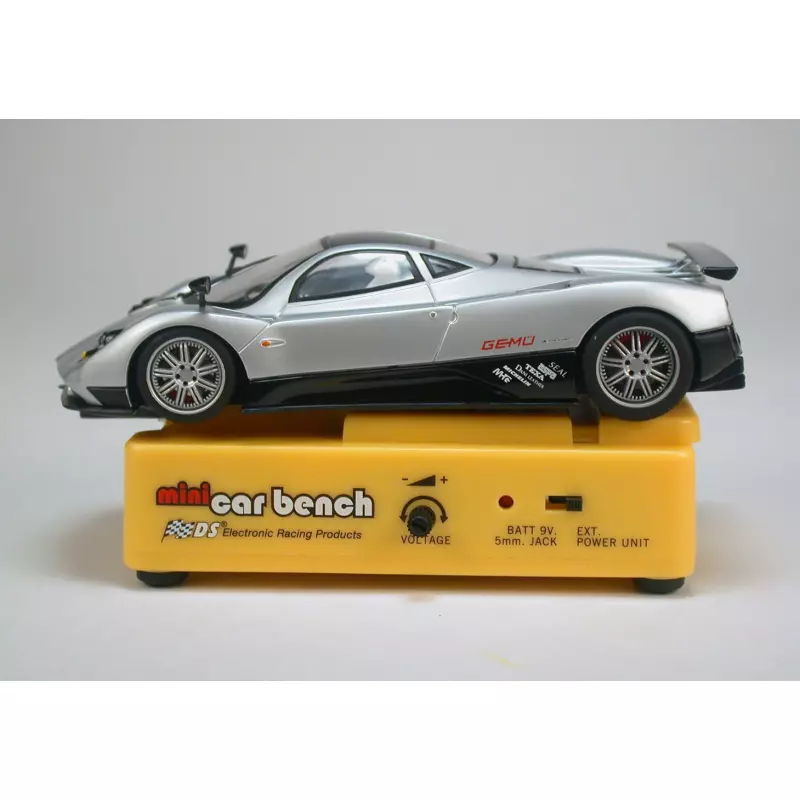

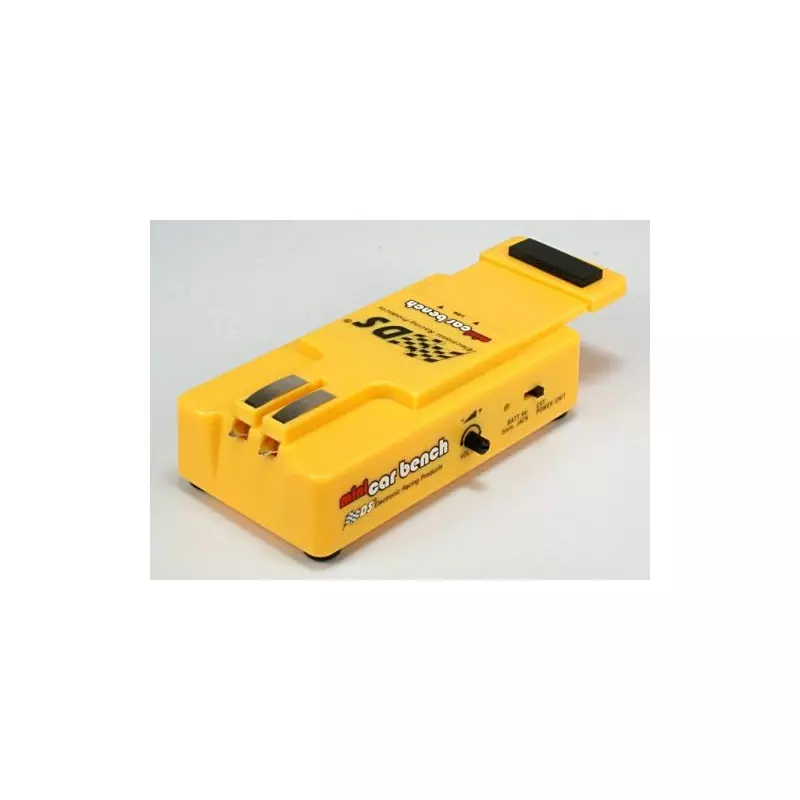

DS Electronics Mini Car Bench v.2

• Easy tool to break in and adjust your 1/32 or 1/24 Slot car.
• Perfect for quickly testing the car or chasis at any place.
• Uses internal 9V or external electrical power.
• Automatic motor break in system with adjustable timing.

The duration of the running varies depending on the next variables : the MiniCar Bench input voltage, the motor type, the voltage value selected by the VOLTAGE potentiometer selector and, of course, the value selected by the potentiometer RUNNING TIME. This time can be from the minimum of 5 minutes to the maximum of 30 minutes.

Technical Data :

• Small size to allow support of any 1/32 car, but has self extracting extension will also allow you to use in larger scale cars like 1/28 or even 1/24 scale.
• Contact plates for the braids with the extentions in order to extended to allow an easy external measurement of car consumption or voltage applied.
• Sponge absorbing for car vibrations; do not allow the car to move over the bench.

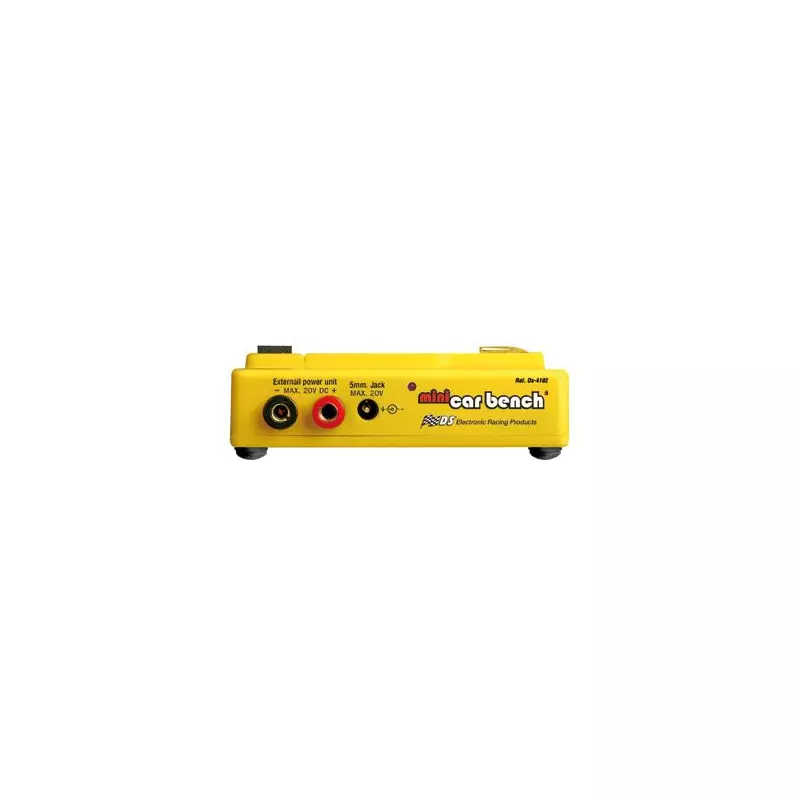

• Triple power input :
  a) Using an external power unit thought the 2 units of 4 mm banana plugs (red and black) fixed at one of the sides to not disturb.
  b) Using the external bipolar jack transformer connection.
  c) Using a 9V battery fitted inside the bench.
• External switch allow to save battery when not used.

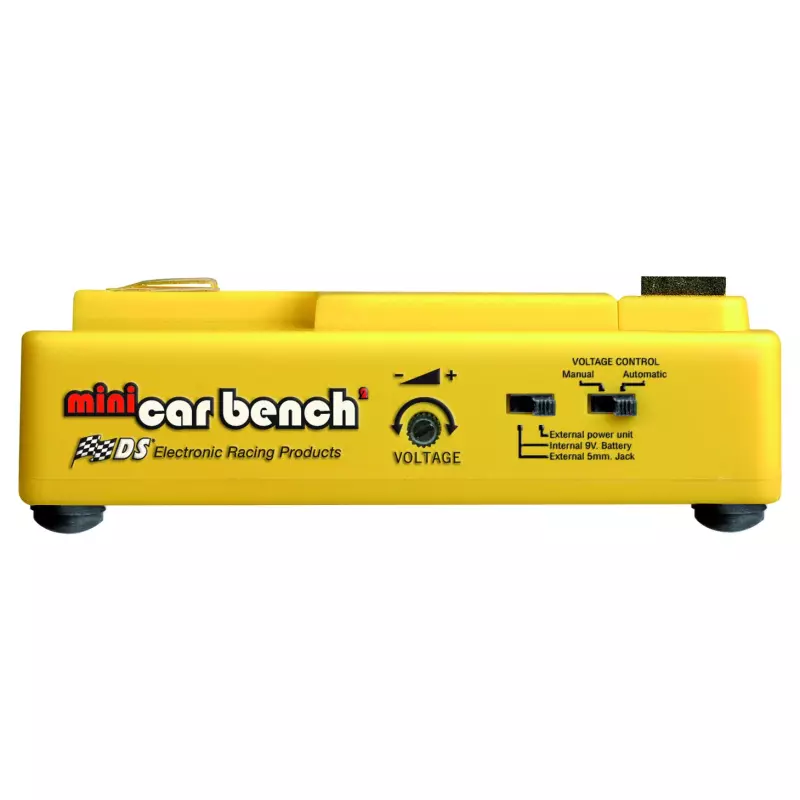

• External fine and precise voltage regulator from the maximum given in the input to 0.
• On/Off LED indicator.
• Shortcircuit protection.

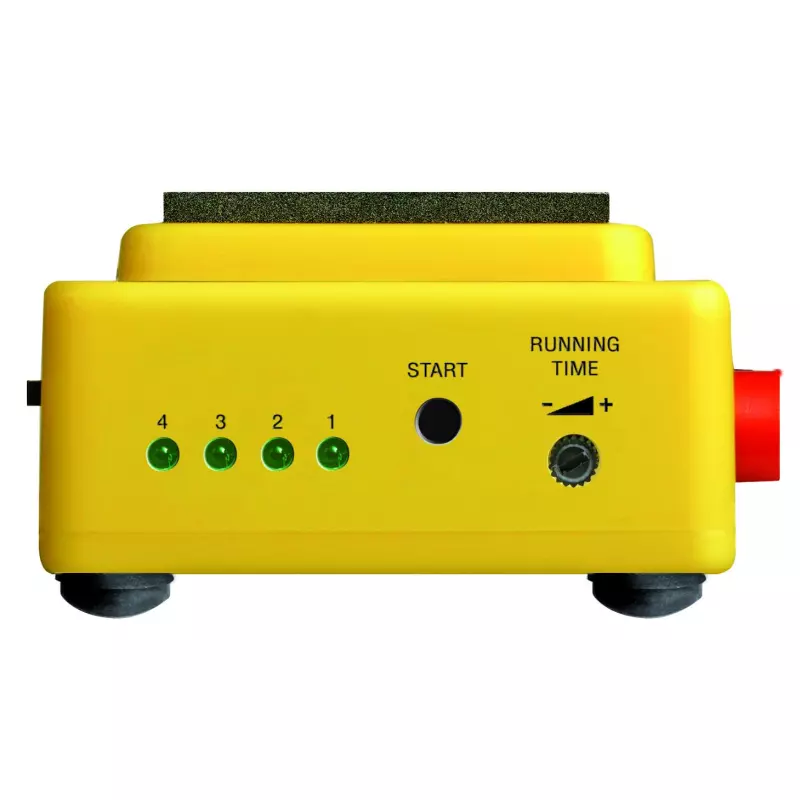

• Potentiometer for motor break in time adjustment.
• 4 green LEDs indicating the duration of the automatic running.
