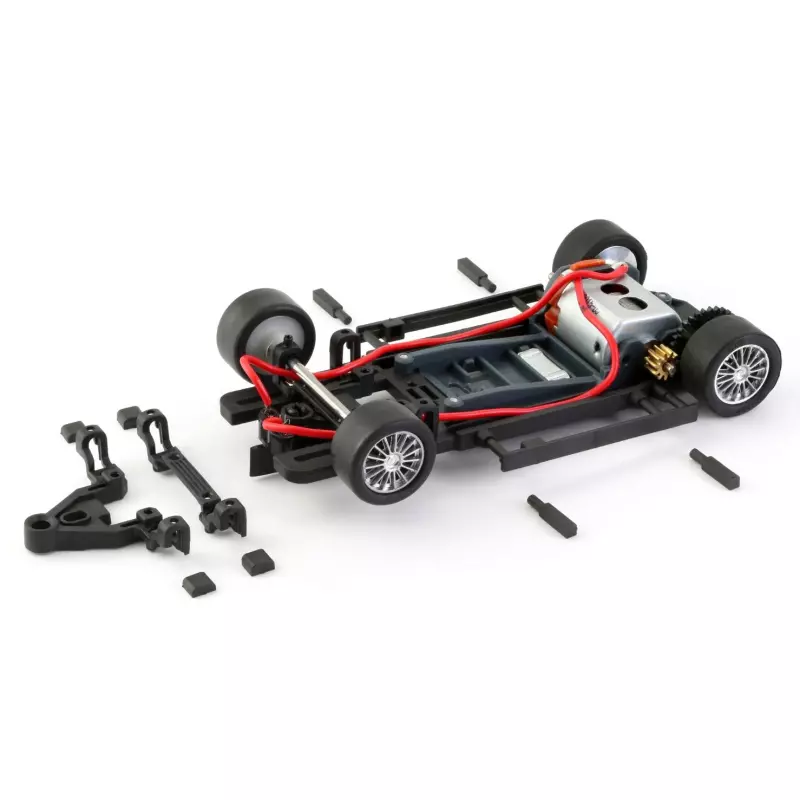

Slot.it CH31c Ready to Run HRS2 Sidewinder Chassis 0,5mm Offset
Reference : CH31c
Description
The HRS chassis is a fully configurable, universal plastic chassis for slot cars. It comprises four main parts : main chassis, front chassis, motor mount and body mounting means.
Adjustable Wheelbase
The front chassis can be positioned freely within a wheelbase between 64 and 90 mm.
Selectable Front Axle Position
The front axle can be placed in one of two possible positions, one of which completely adjustable, making it easy to adjust the distance from the pickup.
Flexible Assembly System
The chassis and the body can be joined with either four mounting posts and cups (HRS1 style), two three-posts sidebars, or, on some
cars, where possible, with the car's own screw holes.
New from the CH31b release :
- New plastic Sidewinder gear z=32 (GS1832-Pl)
- Two hexagonal screw M2x3mm into Pickup CH66
The CH31c kit includes :
- x1 CH62 Sidewinder Motor Mount 0,5mm Offset
- x1 Motor MX06 V12/3 21500 RPM 170g*cm
- x1 GS1832 Crown 32 teeth Ø18mm for sidewinder
- x1 PS11 Sidewinder Pinions 11 teeth Ø6,5mm
- x1 CN06 Neodimium Magnet for HRS Chassis
- x1 CH66 Clip Racing Pickup
- x4 Hubs Aluminum PA24 Ø15,8 x 8,2mm + inserts OZ type
Technical sheet
Guide blades type
Slot.it CH66
Motor mount
Sidewinder
Motor
MX06 V12/3 21 500 revolutions/minute
Couple
170 g*cm
Transmission
Rear-wheel-drive (rear 2 wheels)
Gear ratio
11:32 (Pinion 11 teeth - Crown 32 teeth)
Suspension
No
Lighting
No
Magnet
Slot.it CN06
Height
19 mm
Wheelbase
64 - 90 mm
Rear Tire
PT1167C1
Front Tires
PT1045C1 (PT34)
Axle width
57 - 61 mm
Scale
1:32
