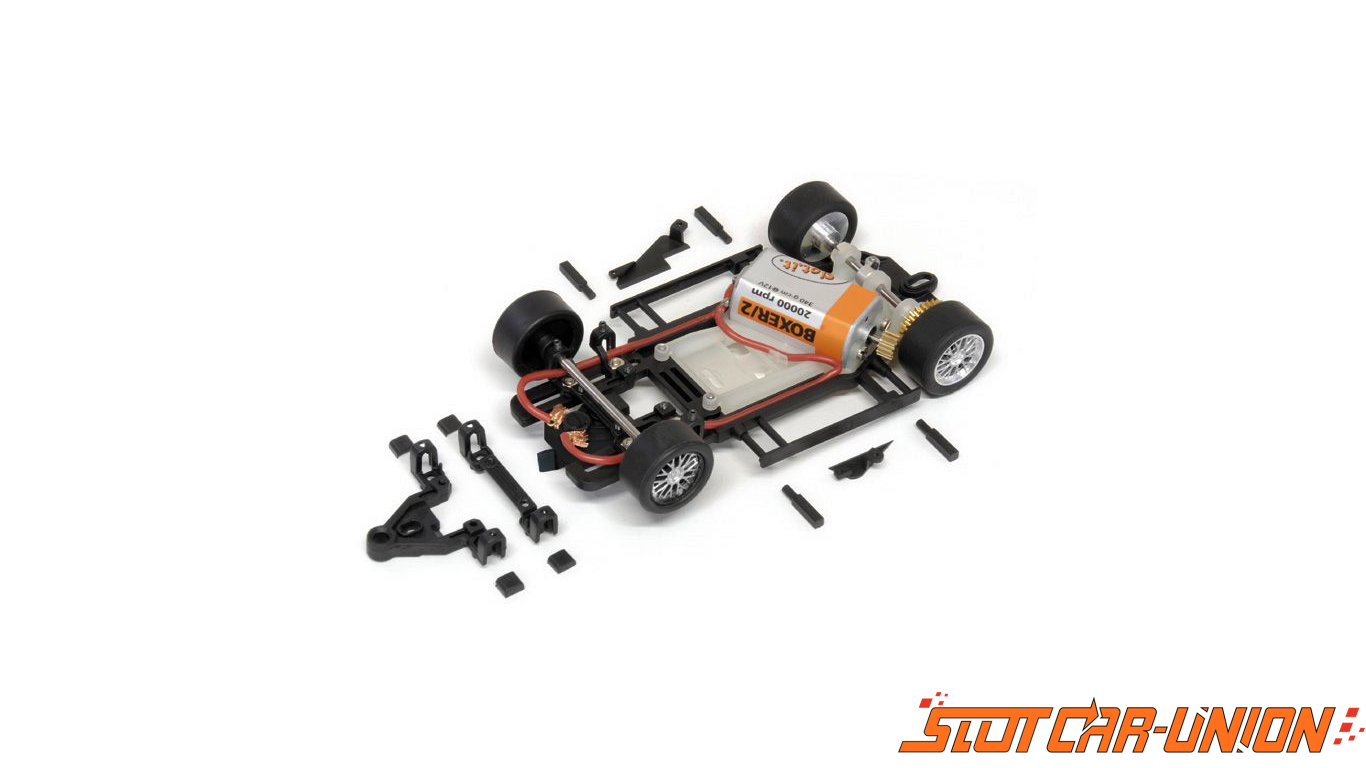

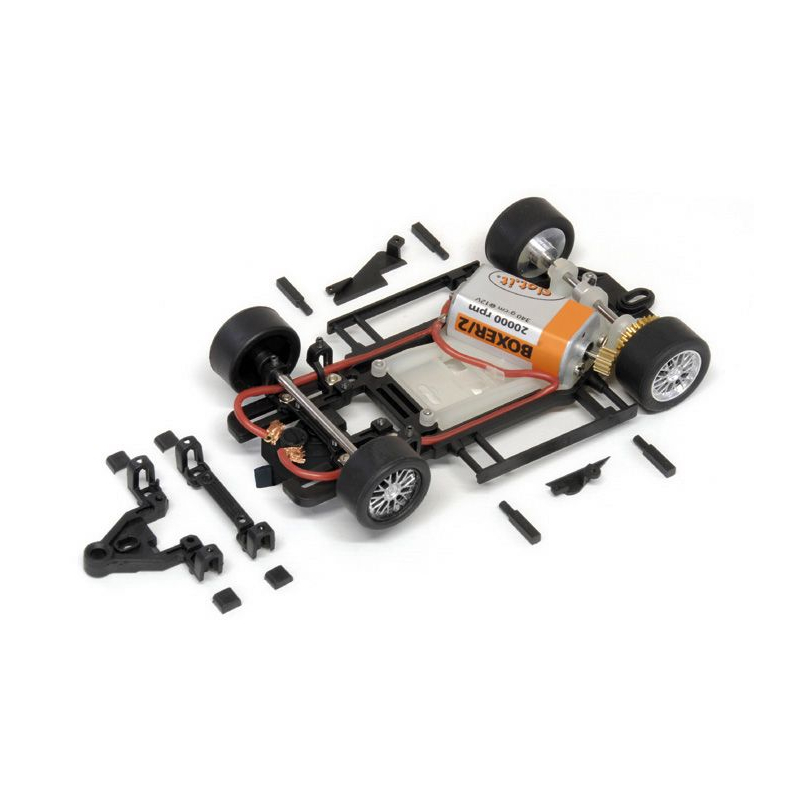

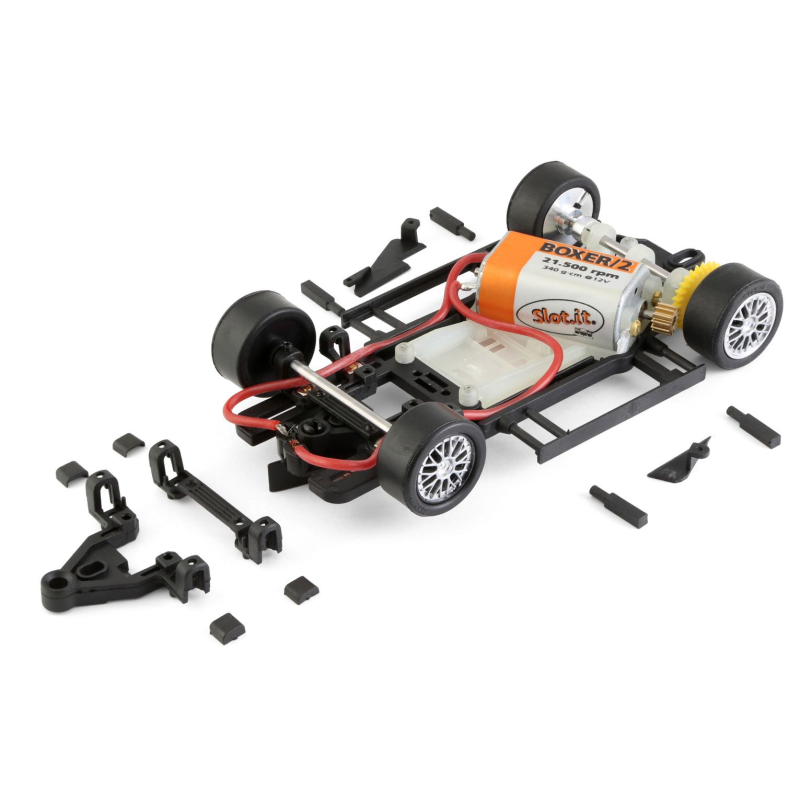

Slot.it CH32 Ready to Run HRS2 Anglewinder Chassis 1mm Offset
Reference : CH32
Motor mount Anglewinder
Transmission Rear-wheel-drive (rear 2 wheels)
1:32 Scale 1:32
€34.50
Tax included
You accumulate 1.02 € by buying this product
Description
Universal full chassis ready to run
The HRS chassis is a fully configurable, universal plastic chassis for slot cars. It comprises four main parts : main chassis, front chassis, motor mount and body mounting means.
Adjustable Wheelbase
The front chassis can be positioned freely within a wheelbase between 64 and 90 mm.
Selectable Front Axle Position
The front axle can be placed in one of two possible positions, one of which completely adjustable, making it easy to adjust the distance from the pickup.
Flexible Assembly System
The chassis and the body can be joined with either four mounting posts and cups (HRS1 style), two three-posts sidebars, or, on some
cars, where possible, with the car's own screw holes.
The CH32 kit includes :
- x1 Motor Mount
- x1 Motor Boxer/2 20000 RPM 340g*cm
- x1 Crown
- x1 Pinion
- x4 Hubs Aluminum
Technical sheet
Motor mount
Anglewinder
Couple
340 g*cm
Transmission
Rear-wheel-drive (rear 2 wheels)
Suspension
No
Lighting
No
Wheelbase
64 - 90 mm
Axle width
Front 54 mm - Rear 54 mm
Scale
1:32
