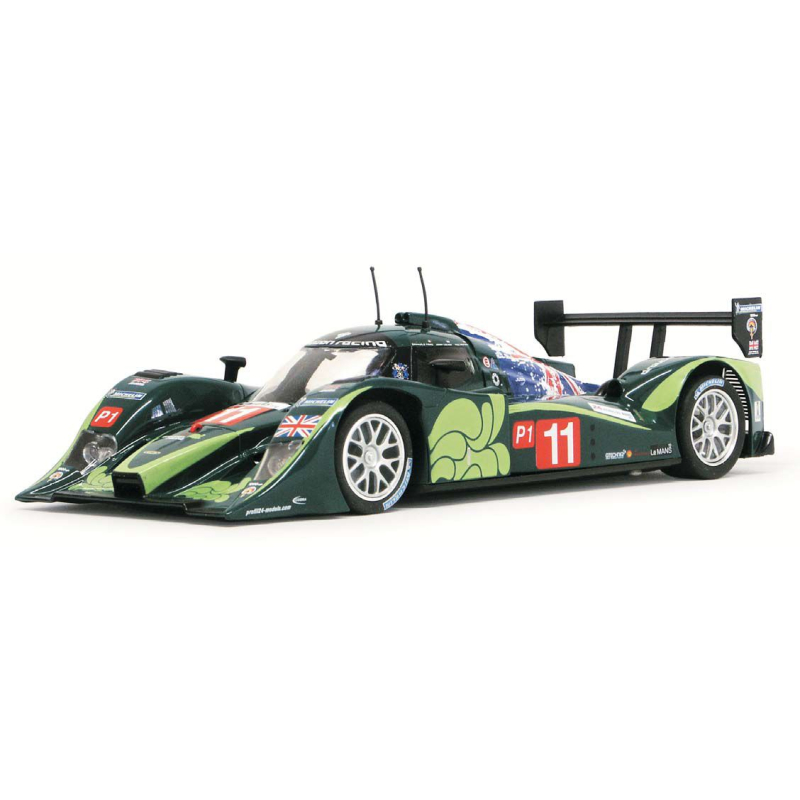

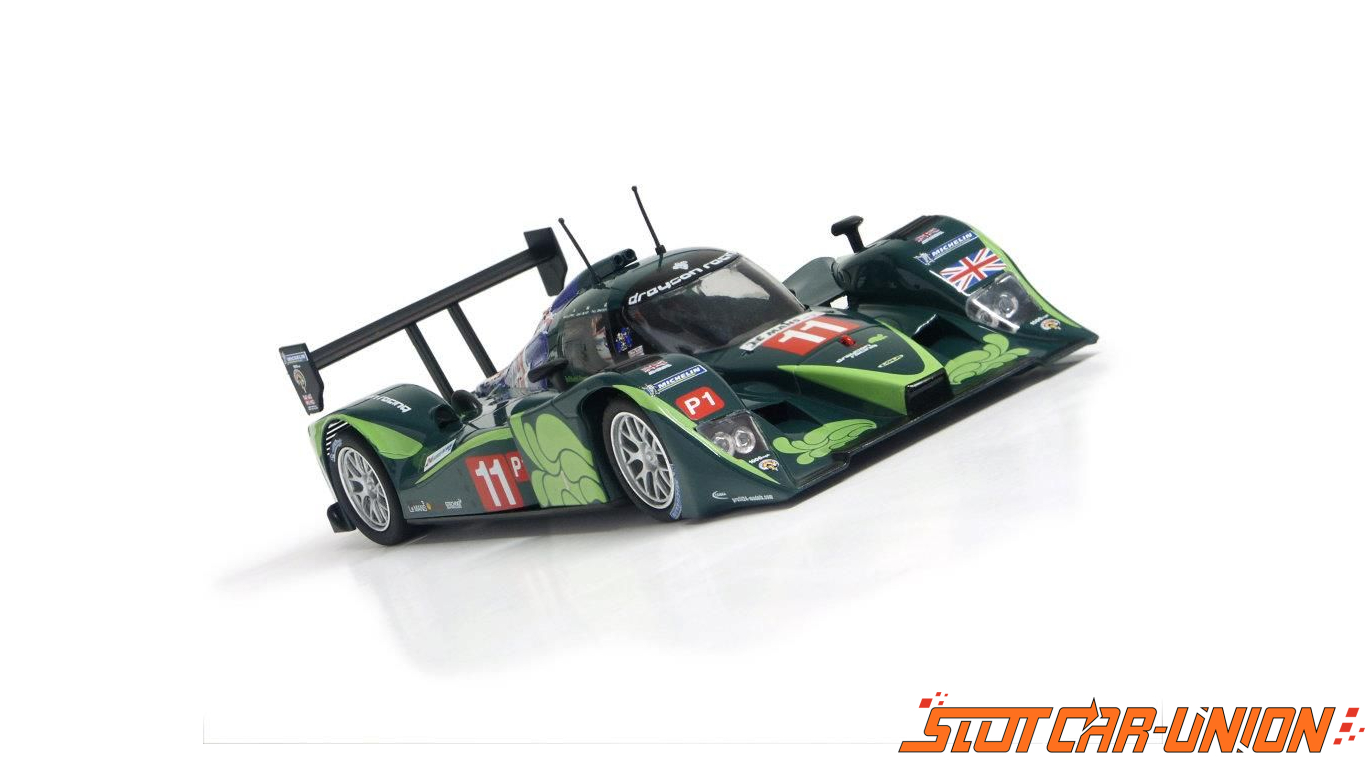

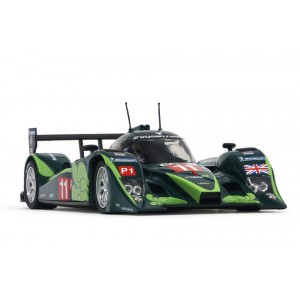

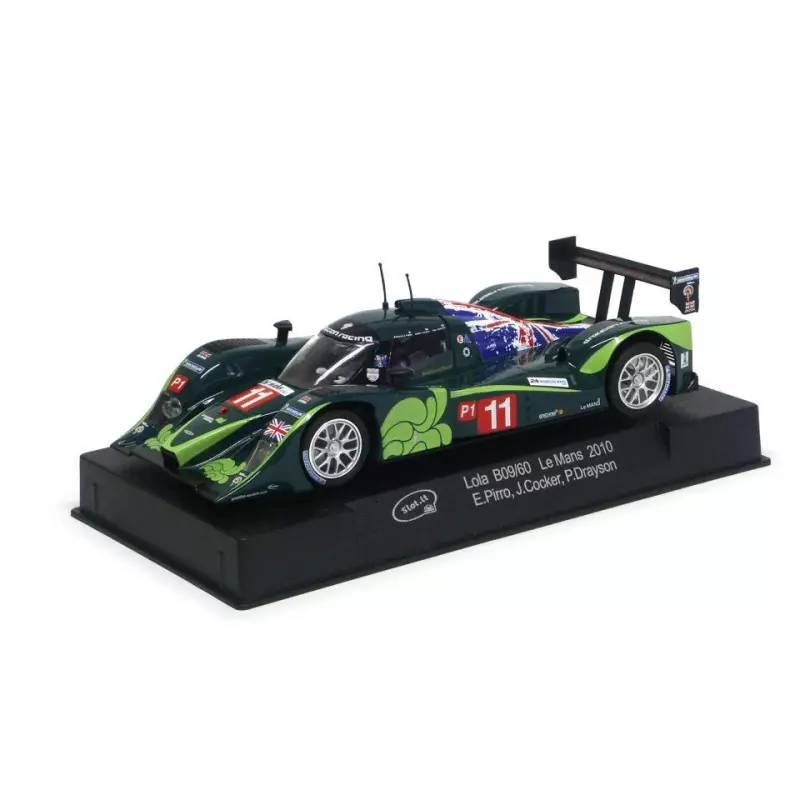

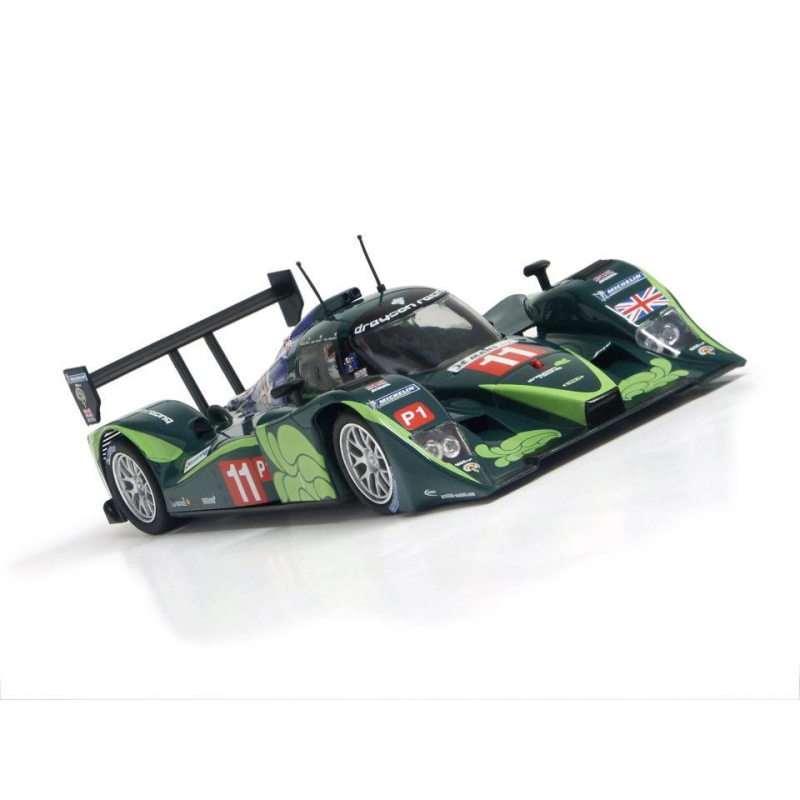

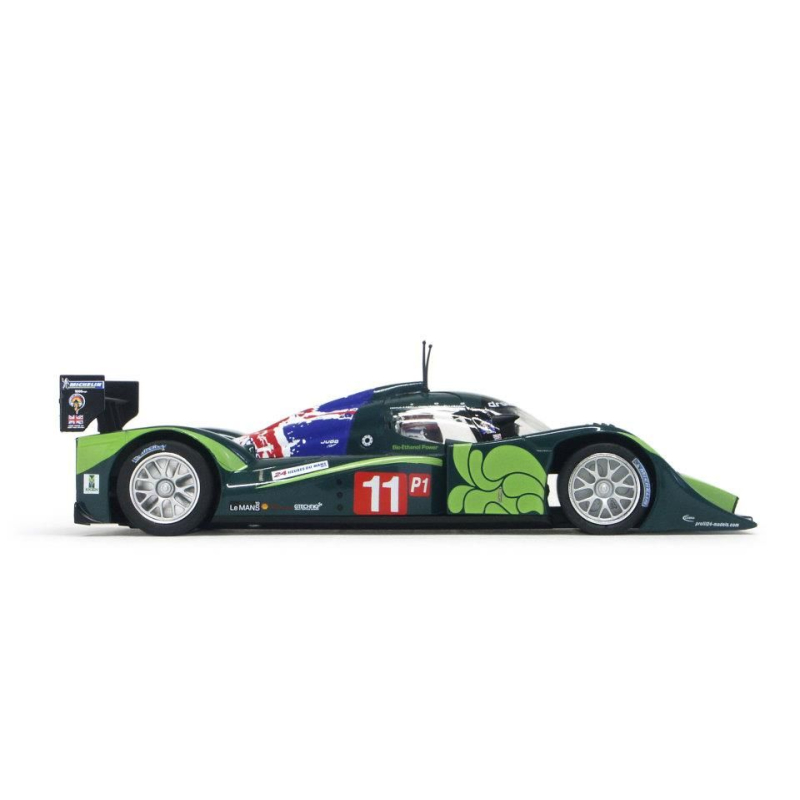

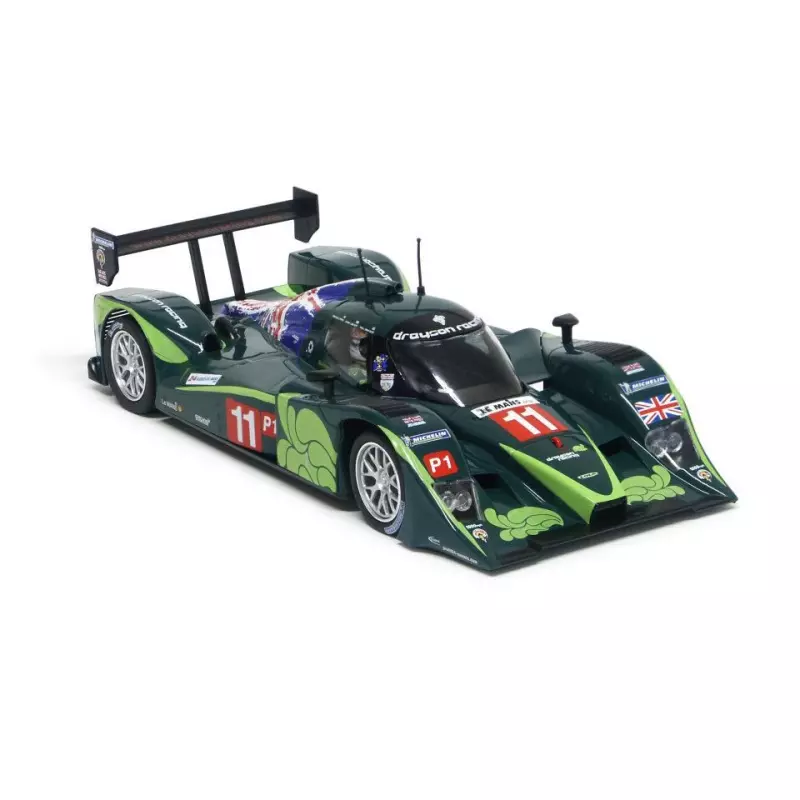

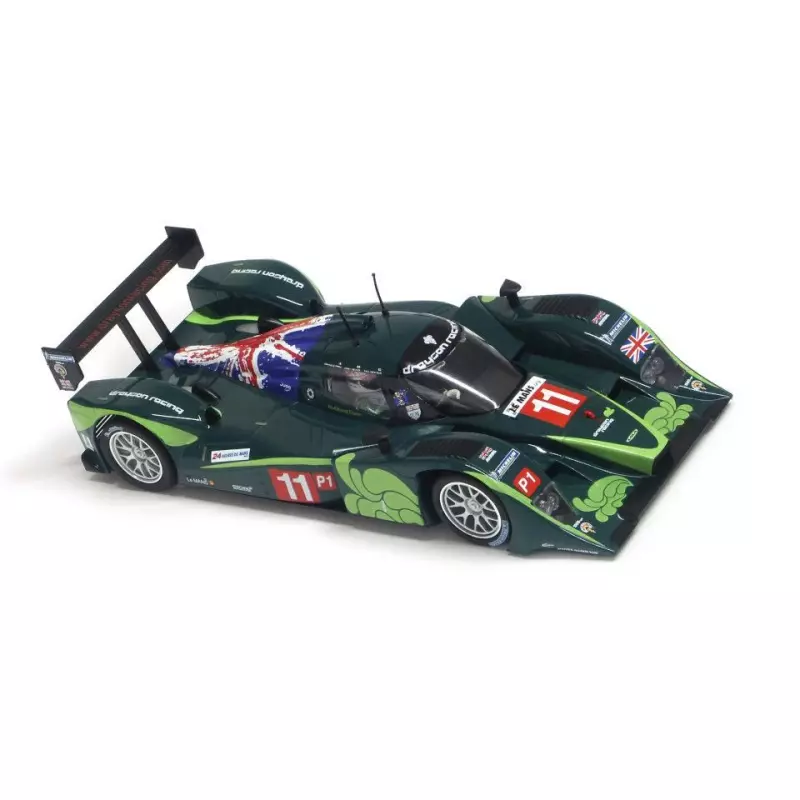

Expertise and quality of model making at the service of a passion Brand CA22a Lola B09/60 n.11 Le Mans 2010

: CA22a

  • Twitter
  • Pinterest
  • Mail

46,90 €

Vous cumulez 46 points de fidelité
Votre panier totalisera 46 points qui pourront être convertis en bon de réduction pour un prochain achat.

This product is no longer in stock

Ce produit n'est actuellement plus disponible.
Souhaitez-vous être informé par e-mail de sa disponibilité ?

Free delivery on orders over 100€*
  • 11

    Race Car Number
  • Motor mount
  • Transmission
    Rear-wheel-drive (rear 2 wheels)
  • 1/32



Drivers : E. Pirro, J. Cocker and P. Drayson

Lola B09/60 is a sportscar created to compete in the Lmp1 category at the Le Mans 24 Hours. Lola has built cars for Le Mans since 1999; even the factory MG and Aston Martin cars were designed by the English constructor. In 2008, Lola was the first to offer a Coupe design available to privateer teams.

Chassis monocoque and crash box are made of carbon fiber composite. The suspension scheme is push-rod on both the front and the rear axle, with springs operated via rockers. Gearbox Xtrack 6 speeds, operated via paddle shift. Brakes have 4 pistons AP Racing calipers and carbon vented rotors. Wheels diameter is 18 inches. Overall weight 900 kg, the minimum according to regulations.

A Lola B09/60 was engaged with number 11 by Drayson Racing at the Le Mans 24 Hours 2010; it was driven by Emanuele Pirro, Jonny Cocker and Paul Drayson.

Engine was the Judd GV 5.5, a V10, 72° unit, with 4 valves per cylinder and double overhead camshaft. Displacement was 5.5 liters and weight 135 kilograms; the maximum power, with the two air restrictors required by the rules, is 650 hp at 7000 rpm.

Data sheet

  • Brand
    Lola Cars
  • Race Car Number
  • System
  • Compatible Analog
  • Carrera DIGITAL conversion SP43
  • Scalextric Digital conversion SP15b
  • Motor mount
  • Motor
    MN09ch Flat-6 20 500 revolutions/minute
  • Couple
    200 g*cm
  • Transmission
    Rear-wheel-drive (rear 2 wheels)
  • Gear ratio
    11:28 (Pinion 11 teeth - Crown 28 teeth)
  • Suspension
  • Lighting
  • Magnet
  • Length
    148 mm
  • Height
    32 mm
  • Wheelbase
    92 mm
  • Rear Tire PT1152C1
  • Front Tires PT1159C1
  • Axle width
    63 mm
  • Weight
    76 gr
  • Scale
